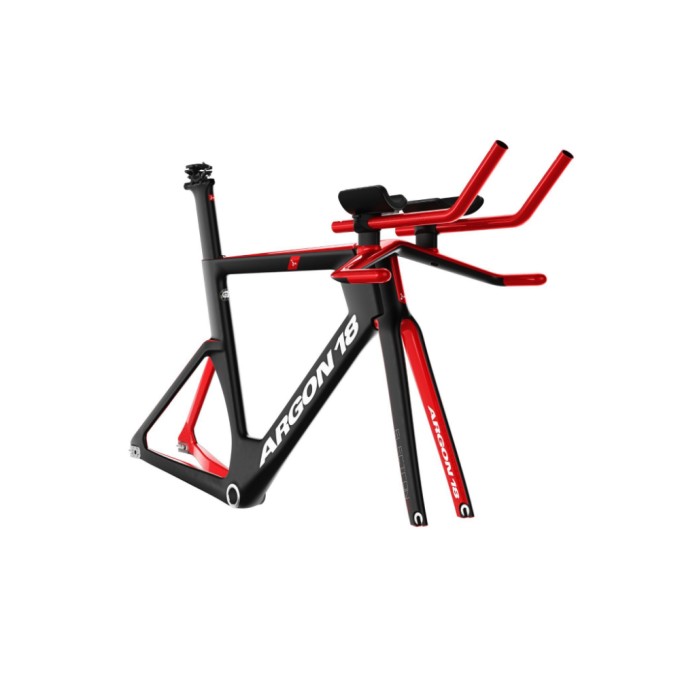

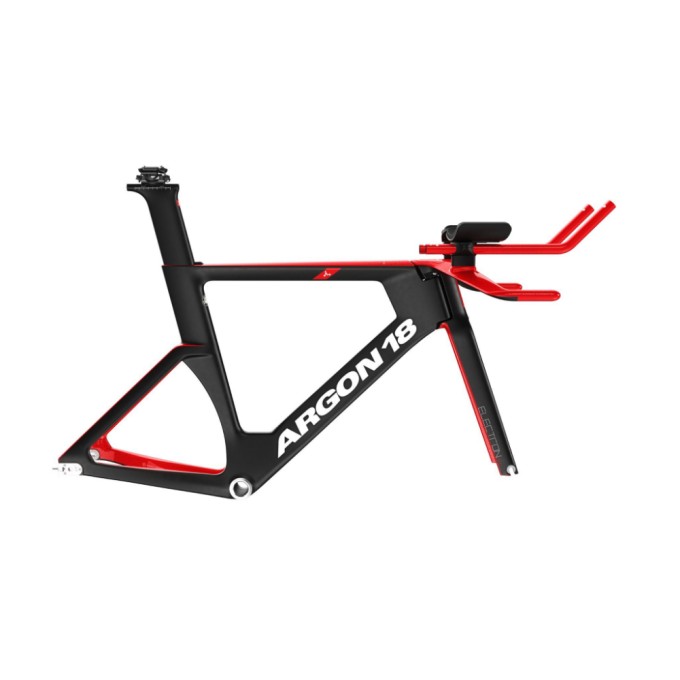

ARGON 18 - ELECTRON PRO RIO PURSUIT - Rio Pursuit Frameset
Order in advance
ARGON 18 - ELECTRON PRO RIO PURSUIT - Rio Pursuit Frameset
- Stock: Order in advance
- Model: ARGON 18 - ELECTRON PRO RIO PURSUIT - Rio Pursuit Frameset
Product Views: 208
7,100.00€
Engineered for the world's fastest riders, the Electron Pro RIO lives for maximum intensity - with minimum drag - offering the perfect balance of aero precision and exceptional power transfer.
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.3
51.7
52.9
54.2
B
Seat tube angle
deg
76.0
76.0
76.0
76.0
C
Head Tube Angle
deg
72.7
72.7
72.7
72.7
D
Top tube length
cm
51.5
54.0
55.6
57.5
E
Chain stay length
cm
37.5
37.5
37.5
37.5
F
Wheelbase
cm
94.7
96.9
98.4
100.1
G
BB Drop
cm
3.7
5.0
5.5
6.0
H1
Head Tube Length Min
cm
8.3
11.0
12.0
13.0
I
Stand Over Height
cm
71.1
78.3
79.8
81.2
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack Min
cm
49.6
53.5
54.9
56.4
J
Stack Max
cm
59.6
63.5
64.9
66.4
K
Reach Min
cm
45.1
46.7
47.9
49.4
K
Reach Max
cm
49.6
51.2
52.4
53.9
Saddle Height Min
cm
54.3
63.7
64.9
66.2
Saddle Height Max
cm
83.3
92.7
93.9
95.2
Standover Height is measured with 700x23c tires
