ARGON 18 - E117 - Shimano 105
New
Order in advance
ARGON 18 - E117 - Shimano 105
4,695.00€
Introducing the new, redesigned E117 triathlon bike, developed for serious triathletes and TT competitors determined to shatter their personal bests. The E117 is a race-ready, fully-equipped and value-packed performance machine, delivering unmatched innovation drawn directly from our pro-level bikes.
Shimano 105 Components
Argon 18 Integrated Brake System
Argon 18's integrated brakes seamlessly merge aerodynamics with braking efficiency. Designed to reduce drag and enhance performance, the brakes are integrated into the frame, providing precise control and unparalleled aerodynamic advantage.
Shimano 105 R7100
A reliable groupset that many beginner riders choose for training and competition as they move up the rankings.

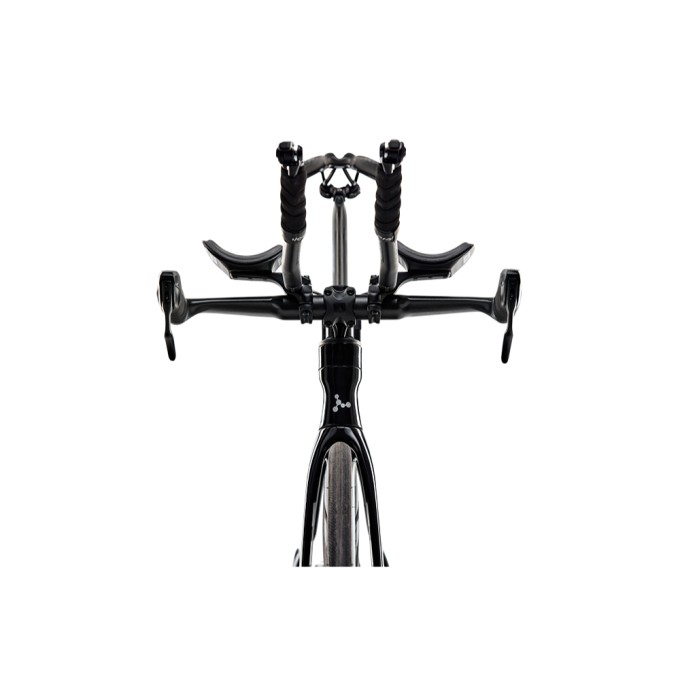

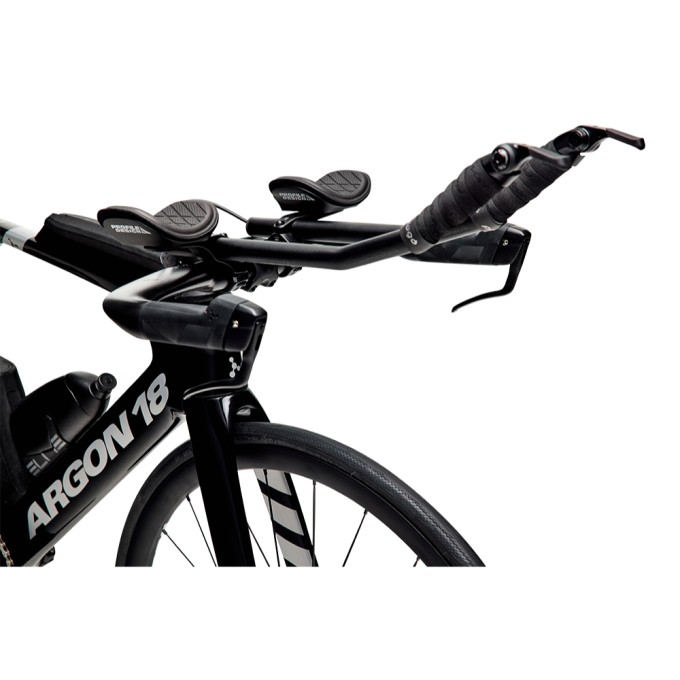

Profile Design Sonic/Ergo/39a aerobars
The Profile Design Sonic/Ergo/39a aerobars offer comfort and speed for triathletes and time trialists. Engineered for aerodynamic efficiency and ergonomic support, they offer adjustable armrests and extension positions to optimize comfort and performance, allowing riders to achieve optimum aerodynamic positions with ease.
Frameset
Frame
E117
Fork
E117
Headset
E117
Integrated Cables
Yes
Wheels
Wheels
DT Swiss E1800 SPLINE DB 32mm
Tires
Vittoria Rubino Pro IV 28-622 TLR
Tire Clearance
30C (32mm)
Group
Bottom Bracket
Shimano BB-RS500-PB
Front Derailleur
Shimano 105 R7100
Rear Derailleur
Shimano 105 R7100
Crankset
Shimano 105 FC-R7100 52/36
Chain
Shimano 105 CN-M7100
Cassette
Shimano 105 CS-R7100 11-34
Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System
Rotors
TRP TR140-25 / F:140mm R:140mm
Shifters
Microshift TT/Tri bar end shifters
Other Components
Handlebar
Argon 18 carbon basebar
Stem
Profile Design 1/Seventeen Stem -17°
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss (custom)
Saddle
Prologo Dimension-Tri 143
Seatpost
E-117T Disc
Extensions
PD Sonic/Ergo/39a (400mm) Aerobar + 10mm pad
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
45,5
50,0
51,6
54,2
56,8
B
Seat tube angle
deg
78,0
78,0
78,0
78,0
78,0
C
Head Tube Angle
deg
72,0
72,0
72,0
72,0
72,0
D
Top tube length
cm
49,2
50,4
51,7
52,7
54,5
E
Chain stay length
cm
41,3
41,3
41,3
41,3
41,3
F
Wheelbase
cm
97,6
98,9
100,4
101,7
103,8
G
BB Drop
cm
7,0
7,0
7,0
7,0
7,0
H1
Head Tube Length 3D (0mm)
cm
4,9
6,0
7,7
10,4
13,1
H2
Head Tube Length 3D (35mm)
cm
8,4
9,5
11,2
13,9
16,6
I
Stand Over Height
cm
72,9
76,7
78,2
80,8
83,3
L
Fork Length (Axle-to-crown)
cm
37,5
37,5
37,5
37,5
37,5
R
Fork Rake
cm
4,5
4,5
4,5
4,5
4,5
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Armpad stack
cm
58,3 - 61,2
59,4 - 62,2
60,9 - 63,8
63,6 - 66,4
66,1 - 69,0
K
Armpad Reach
cm
40,1 - 48,6
42,1 - 50,6
44,1 - 52,5
45,6 - 54,0
47,8 - 56,3
Saddle Height Min
cm
60.0
64,5
66,1
68,7
71,3
Saddle Height Max
cm
77.0
81,5
83,1
85,7
88,3
