ARGON 18 - SUBITO EROAD - Shimano Ultegra Di2
Order in advance
ARGON 18 - SUBITO EROAD - Shimano Ultegra Di2
- Stock: Order in advance
- Model: ARGON 18 - SUBITO EROAD - Shimano Ultegra Di2
Product Views: 211
6,700.00€
When you want to push yourself through that extra 50km, or take the steepest route to the top – and actually enjoy the views on the way up – or want to let go of the myth of the suffer-fest, this is your ride. And with a sub-12kg bike that handles, fits, and responds at the top of its class, it may provide all that even without the assistance of the motor. But if you want that bit of extra tailwind, it’s ready for you.
Shimano Ultegra Di2 Components
Shimano Ultegra Di2 R8150
With lightning-fast, accurate, and reliable shifting performance, Ultegra Di2 puts riders in complete control and ensures a seamless interface between the cyclist and bike.
Mahle X35 motor
The MAHLE X35+ rear hub motor offers up to 40 Nm of natural and almost drag-free support and is powered by a 250 Wh internal battery. This system makes eBike frames almost indistinguishable from regular bikes and provides style and utility that is unrivalled on the market.

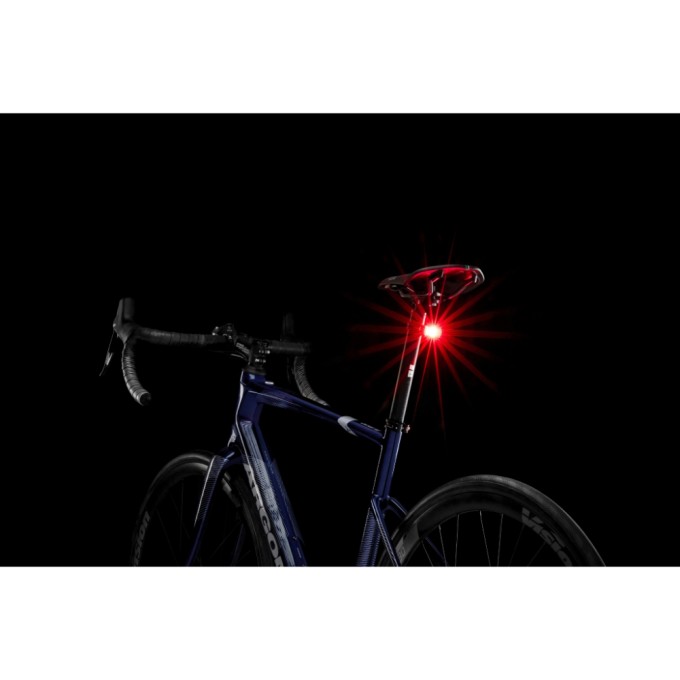

F: LiteMove (110 lux) / R: LiteMove (70 lux)
Internally cabled LiteMove front and rear light system connected to the motor battery and managed through the iWOC controller for seamless look and feel.
F: LiteMove (110 lux) / R: LiteMove (70 lux)
Internally cabled LiteMove front and rear light system connected to the motor battery and managed through the iWOC controller for seamless look and feel.
Frameset
Frame
Subito
Fork
Subito
Headset
FSA SRS with 3D
Integrated Cables
Yes
Storage Optimization System
No
Wheels
Wheels
Vision Team 30 with Ebikemotion Motor
Tires
Vittoria Rubino Pro 700x30c
Group
Bottom Bracket
Shimano BB-RS500
Front Derailleur
Shimano Ultegra Di2 R8150
Rear Derailleur
Shimano Ultegra Di2 R8150
Crankset
Shimano Ultegra FC-R8100 50/34
Chain
Shimano Ultegra CN-M8100 12S
Cassette
Shimano Ultegra CS-R8100 11-30
Brakes
Brakes
Shimano Ultegra Di2 R8150
Brake Levers
Shimano Ultegra Di2 R8150
Rotors
Shimano RT86 / F:160mm R:160mm
Shifters
Shimano Ultegra Di2 R8170
Other Components
Handlebar
FSA Energy SCR Compact
Stem
FSA Energy
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Prologo Proxim W450
Seatpost
Argon 18 TDS-C
Motor
Mahle X35 motor
Included with bike
Toolkit
No
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.0
45.0
48.5
52.0
55.5
59.0
B
Seat tube angle
deg
75.5
74.9
74.3
73.7
73.1
72.5
C
Head Tube Angle
deg
69.3
70.8
71.3
72.0
72.0
72.3
D
Top tube length
cm
49.0
51.0
52.7
55.0
57.3
59.8
E
Chain stay length
cm
42.2
42.2
42.2
42.2
42.2
42.2
F
Wheelbase
cm
99.4
99.7
101.0
101.4
103.2
104.8
G
BB Drop
cm
7.5
7.5
7.5
7.5
7.5
7.5
H1
Head Tube Length 3D (0mm)
cm
10.6
12.1
14.2
16.1
18.6
21.2
H2
Head Tube Length 3D (25mm)
cm
13.1
14.6
16.7
18.6
21.1
23.7
I
Stand Over Height
cm
68.3
71.0
74.2
77.3
80.4
83.5
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack 3D (0mm)
cm
51.9
53.9
56.1
58.4
60.8
63.4
J
Stack 3D (25mm)
cm
54.2
56.2
58.4
60.7
63.1
65.7
K
Reach 3D (0mm)
cm
35.2
36.2
37.2
38.2
39.2
40.2
K
Reach 3D (25mm)
cm
34.3
35.4
36.4
37.5
38.5
39.5
Saddle Height Min
cm
52.0
55.0
58.5
62.0
65.5
69.0
Saddle Height Max
cm
74.0
77.0
80.5
84.0
87.5
91.0
Standover Height is measured with 700x30c tires
