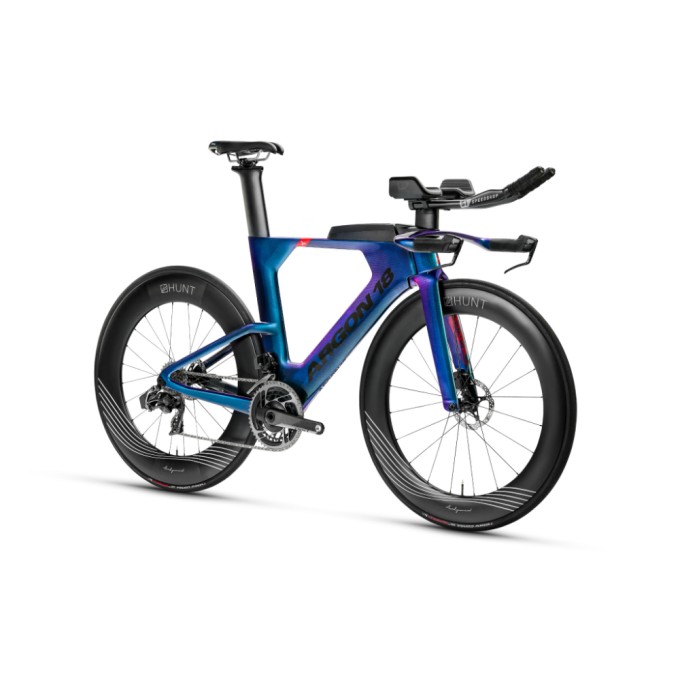

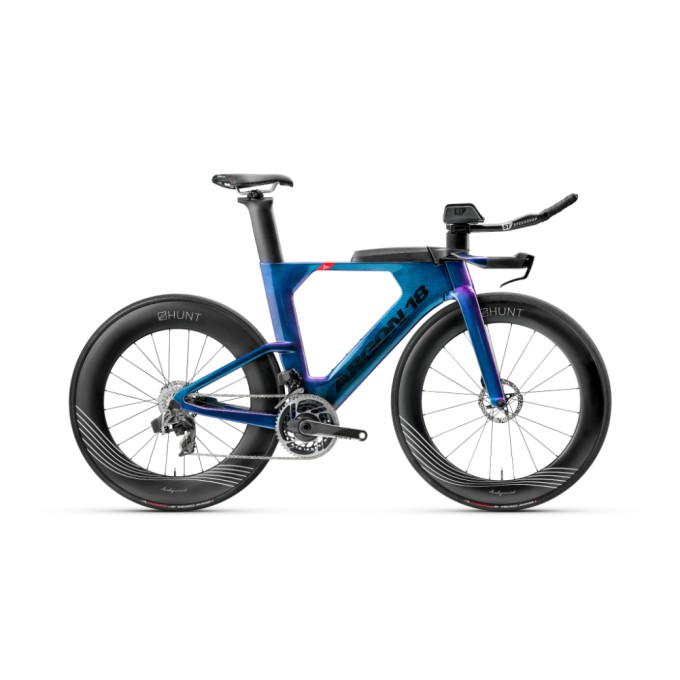

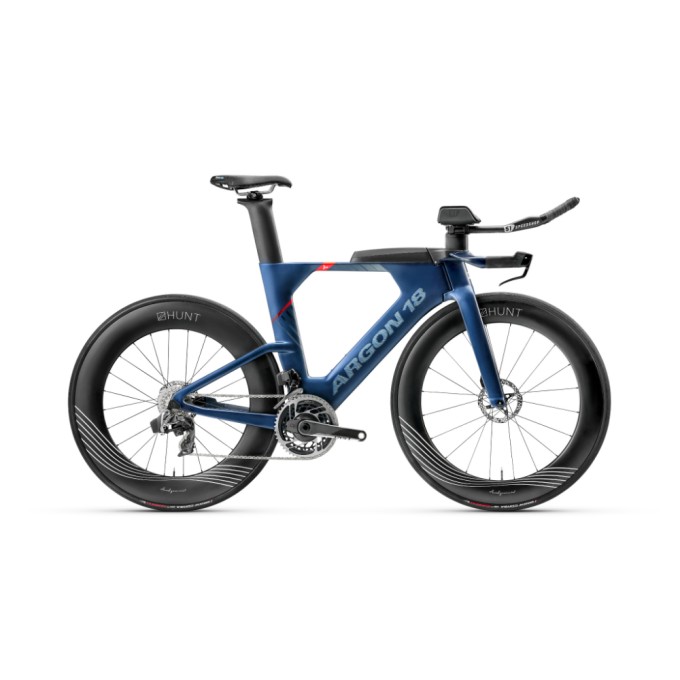

ARGON 18 - E119 Tri+ Disc - SRAM RED eTap AXS
Order in advance
ARGON 18 - E119 Tri+ Disc - SRAM RED eTap AXS
- Stock: Order in advance
- Model: ARGON 18 - E119 Tri+ Disc - SRAM RED eTap AXS
Product Views: 278
11,000.00€

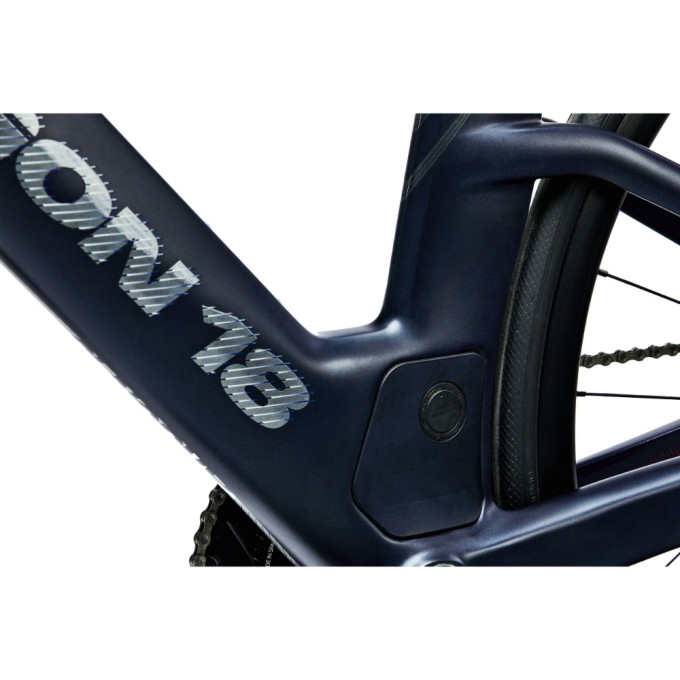

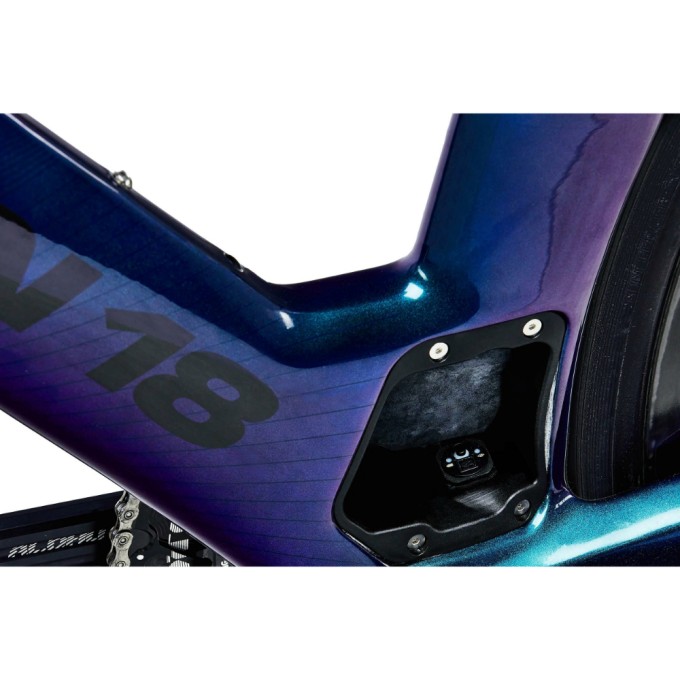

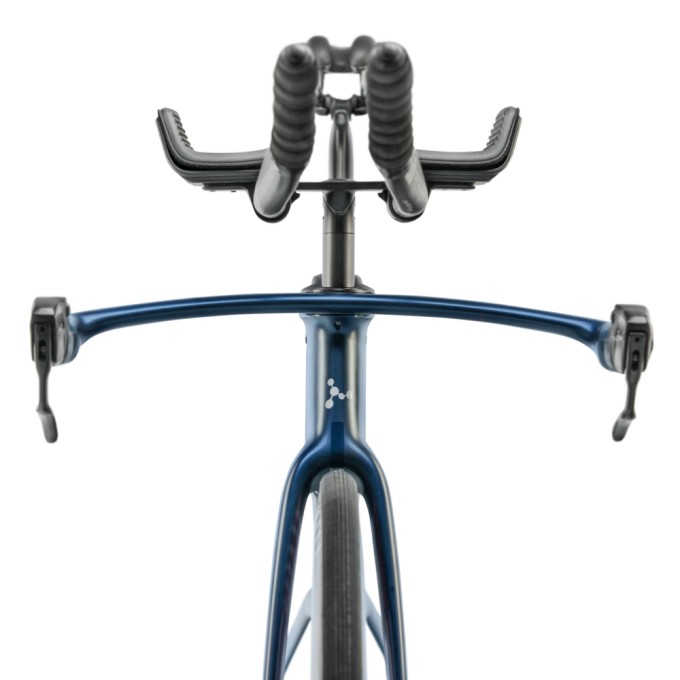

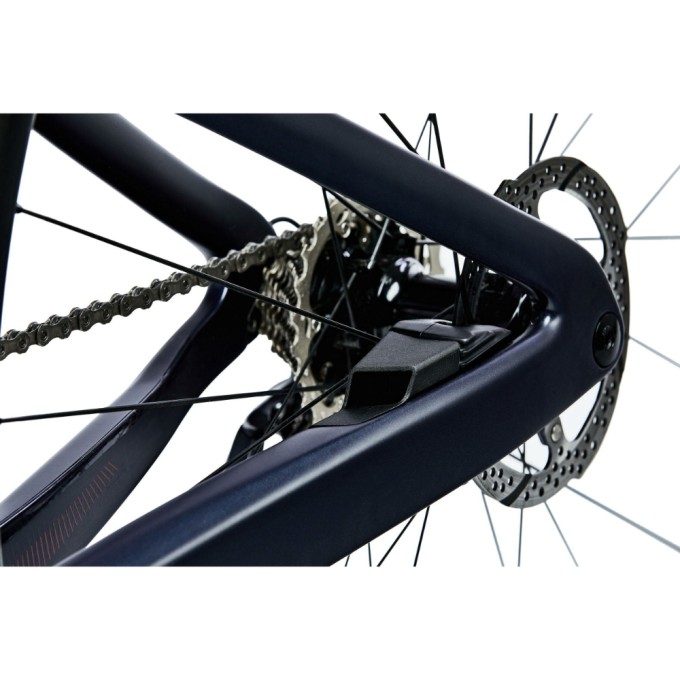

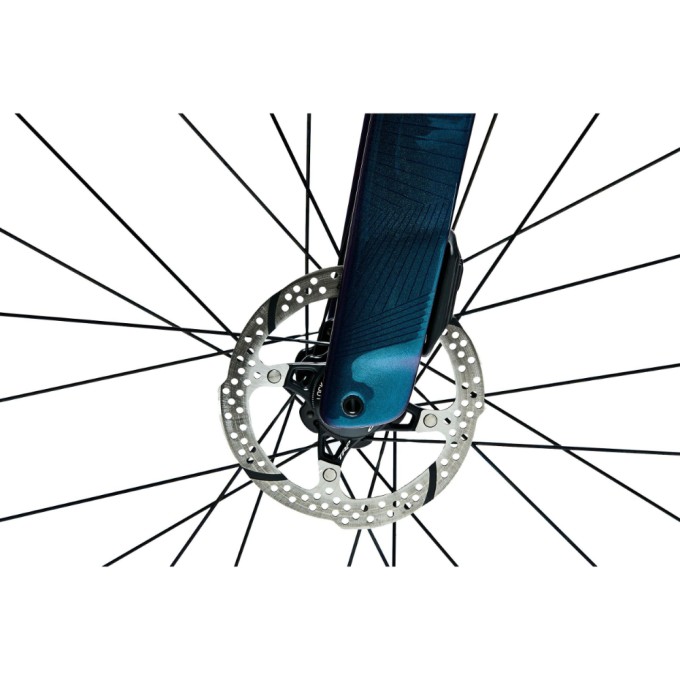

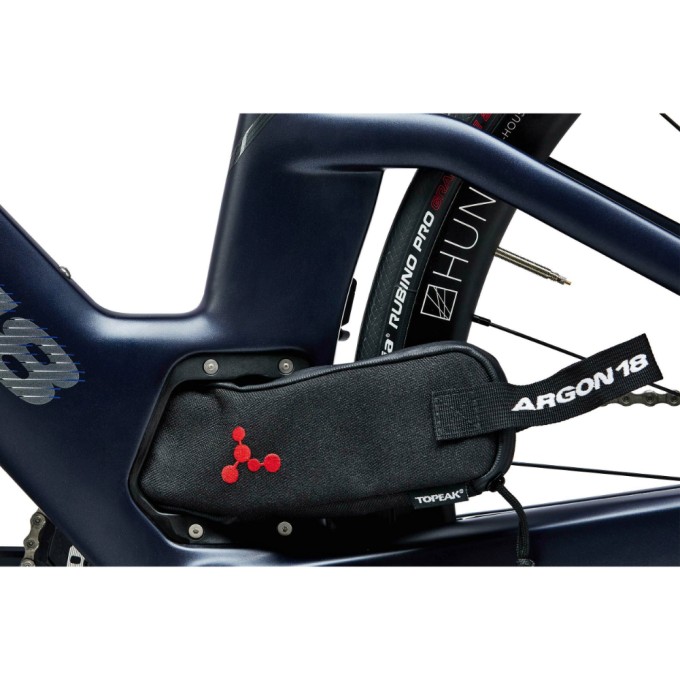

Obviously, as the name says, the E-119 Tri+ Disc sports disc brakes – but that’s just the beginning. In an industry first, we’ve integrated the brake calipers into the frame, for an aero advantage. Integration throughout the design also means a hidden toolkit in the BB, an integrated bento box and a fully re-designed cockpit. That this bike is aero goes without saying – but our focus was on full-system aero integration: bike and rider, plus all carry-ons.
The E-119 Tri+ Disc offers up to a 10W advantage over the previous-generation E-119, considering frame optimization, system integration, and compatibility with advanced aero components, such as wheelsets. When optimal rider position is factored in, using new fit range capabilities, it can add an additional advantage.
SRAM RED eTap AXS Components

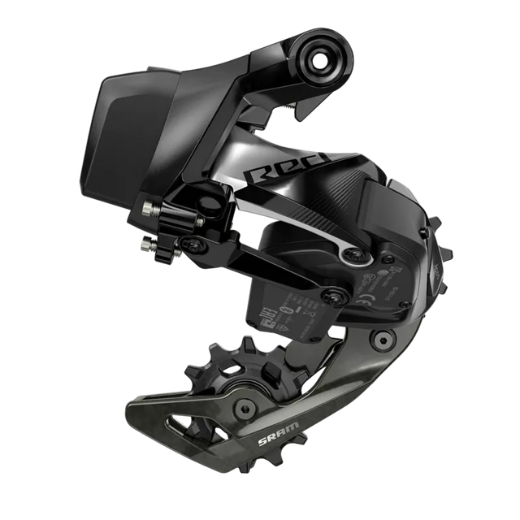

SRAM RED eTap AXS
SRAM RED eTap AXS offers a wider range and closer progression, so you’re always in the right gear. A quiet, secure and smooth ride with a system that does exactly what you want, when you want, at an incredebly low weight.

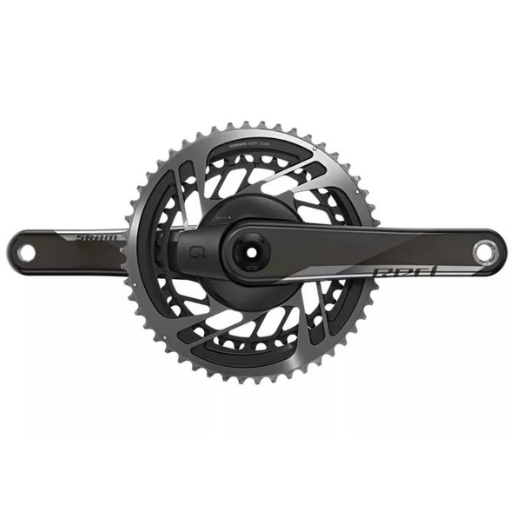

SRAM RED Power Meter DUB 48/35
Crank-integrated Quarq power meter to measure your training efforts and perfectly pace your races.

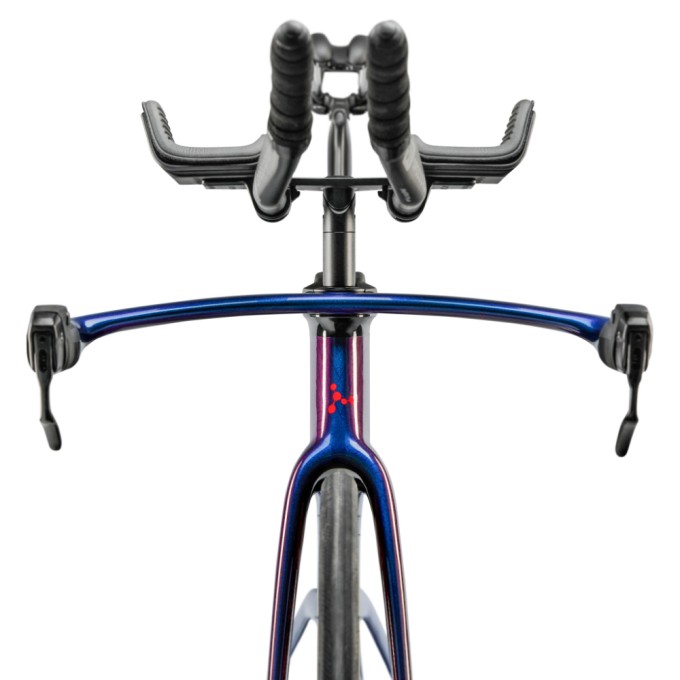

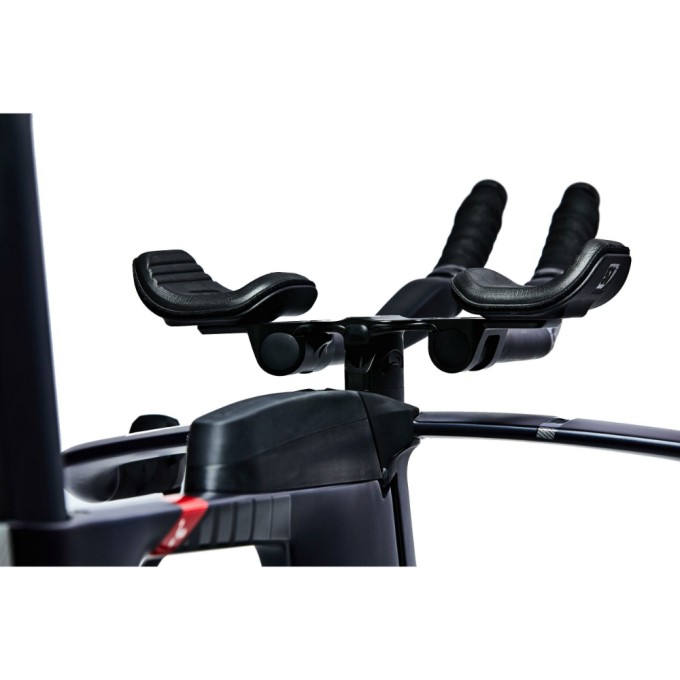

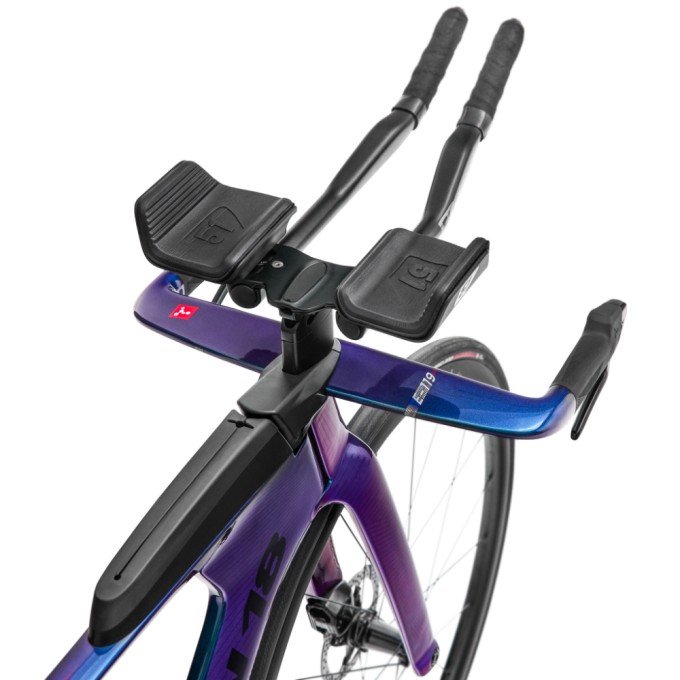

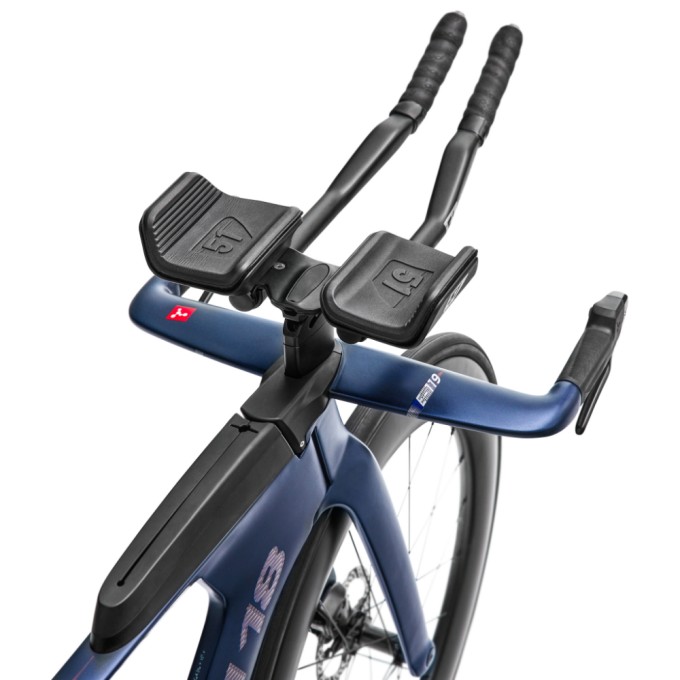

51 Speedshop custom extensions
Featuring an airfoil shape that hugs the arms to optimize aerodynamic performance and a 30 degree grip angle to provide neutral wrist orientation, promoting upper body comfort.
ISM PN3.1
ISM PN 3.1 offers superb thigh and hamstring clearance allowing for more rider body movement around the saddle - great for diving into fast corners.
Frameset
Frame
E-119 Tri+ Disc
Fork
E-119 Tri+ Disc specific
Headset
E-119T+ Disc (included with frameset)
Integrated Cables
Yes
Storage Optimization System
Yes
Wheels
Wheels
HUNT Kona 73-87 Aerodynamicist XDR
Tires
Vittoria Corsa TLR G+ 700x25c
Tire Clearance
28C (30mm)
Group
Bottom Bracket
SRAM DUB PF 86.5 Road
Front Derailleur
SRAM RED eTap AXS
Rear Derailleur
SRAM RED eTap AXS (MAX 33T)
Crankset
SRAM RED Power Meter DUB 48/35
Chain
SRAM RED 12S 114L
Cassette
SRAM XG 1290 10-28 XDR
Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System
Rotors
TRP TR140-25 / F:140mm R:140mm
Shifters
SRAM eTap Clics
Other Components
Handlebar
Argon 18 Integrated Cockpit
Stem
Argon 18 Integrated Cockpit
Bar Tape
Prologo Plaintouch black
Saddle
ISM PN3.1
Seatpost
E-119T+ Disc (included with frameset)
Included with bike
Toolkit
Yes
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
45.5
50.2
51.7
54.2
57.3
B
Seat tube angle
deg
78.0
78.0
78.0
78.0
78.0
C
Head Tube Angle
deg
72.0
72.0
72.0
72.0
72.0
D
Top tube length
cm
49.1
50.5
51.8
53.3
54.9
E
Chain stay length
cm
41.3
41.3
41.3
41.3
41.3
F
Wheelbase
cm
97.4
98.8
100.3
102.1
104.1
G
BB Drop
cm
7.3
7.3
7.3
7.3
7.3
H1
Head Tube Length Min
cm
6.0
7.0
8.6
11.3
14.4
I
Stand Over Height
cm
72.6
76.5
78.0
80.5
83.2
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Armpad stack
cm
57.3 - 66.3
58.3 - 67.3
59.8 - 68.8
62.3 - 71.3
65.3 - 74.3
K
Armpad Reach
cm
41.4 - 50.1
42.4 - 51.1
43.4 - 52.1
44.4 - 53.1
45.4 - 54.1
Saddle Height Min
cm
58.0
62.7
64.2
66.7
69.8
Saddle Height Max
cm
77.5
82.2
83.7
86.2
89.3
Standover Height is measured with 700x23c tires
