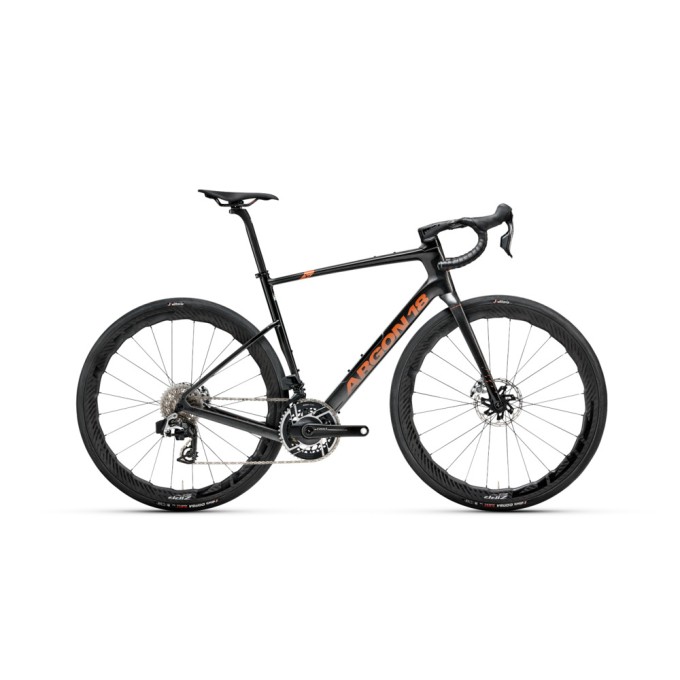

ARGON 18 - KRYPTON PRO - SRAM Red AXS
New
Order in advance
ARGON 18 - KRYPTON PRO - SRAM Red AXS
13,500.00€

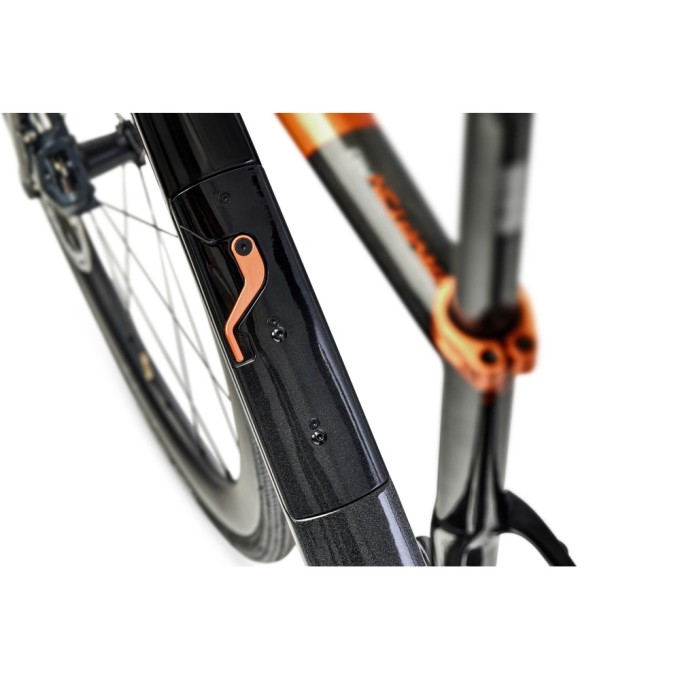

Higher performance, more features, ready for more roads and even more miles. We answered: designed for speed and comfort over all surfaces, the all-new Krypton Pro offers increased tire clearance for versatility, a downtube storage compartment to carry tools and gear, and shorter chainstays for a more responsive ride.
SRAM Red AXS Components
Frameset
Frame
Krypton Pro
Fork
Krypton Pro
Headset
FSA Headset NO.55R 1.5'' + 3D
Integrated Cables
Yes
Storage Optimization System
Yes
Wheels
Wheels
Zipp 353 NSW
Tires
Vittoria Corsa N.EXT 32-622 TLR, black G2.0
Tire Clearance
40c (43mm)
Group
Bottom Bracket
CeramicSpeed T47 SRAM DUB
Front Derailleur
SRAM Red AXS
Rear Derailleur
SRAM Red AXS
Crankset
SRAM RED Power Meter DUB 48/35
Chain
SRAM RED 12S
Cassette
SRAM XG 1290 10-36 XDR
Brakes
Brakes
SRAM RED AXS Caliper Set
Rotors
SRAM Centerlock Centerline / F:160mm R:140mm
Shifters
SRAM RED AXS Shifter Set
Other Components
Handlebar
Vision Metron 5D ACR EVO
Bar Tape
Ciclovation Leather Touch Tornado Reflective
Saddle
Repente Quasar CR Carbon Rail
Seatpost
Argon 18 TDS-C
Included with bike
Toolkit
Yes
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.0
45.0
48.5
52.0
55.5
59.0
B
Seat tube angle
deg
75.5
74.9
74.3
73.7
73.1
72.5
C
Head Tube Angle
deg
70.6
71.5
72.3
72.3
72.3
72.8
D
Top tube length
cm
49.6
51.6
53.7
55.8
58.0
60.4
E
Chain stay length
cm
41.5
41.5
41.5
41.5
41.5
41.5
F
Wheelbase
cm
97.5
98.4
98.9
100.5
102.0
103.3
G
BB Drop
cm
8.0
8.0
7.8
7.8
7.8
7.8
H1
Head Tube Length 3D (0mm)
cm
10.6
12.3
14.2
16.4
18.6
20.8
H2
Head Tube Length 3D (25mm)
cm
13.1
14.8
16.7
18.9
21.1
23.3
I
Stand Over Height
cm
67.5
70.4
73.8
77.0
80.1
83.2
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack
cm
52.3
54.3
56.3
58.4
60.5
62.8
J
Stack 3D (25mm)
cm
54.7
56.7
58.7
60.8
62.9
65.2
K
Reach
cm
35.7
36.7
37.7
38.6
39.5
40.6
K
Reach 3D (25mm)
cm
34.9
35.9
37.0
37.9
38.8
39.8
Saddle Height Min
cm
59.0
62.0
65.5
69.0
72.5
76.0
Saddle Height Max
cm
74.0
77.0
80.5
84.0
87.5
91.0
