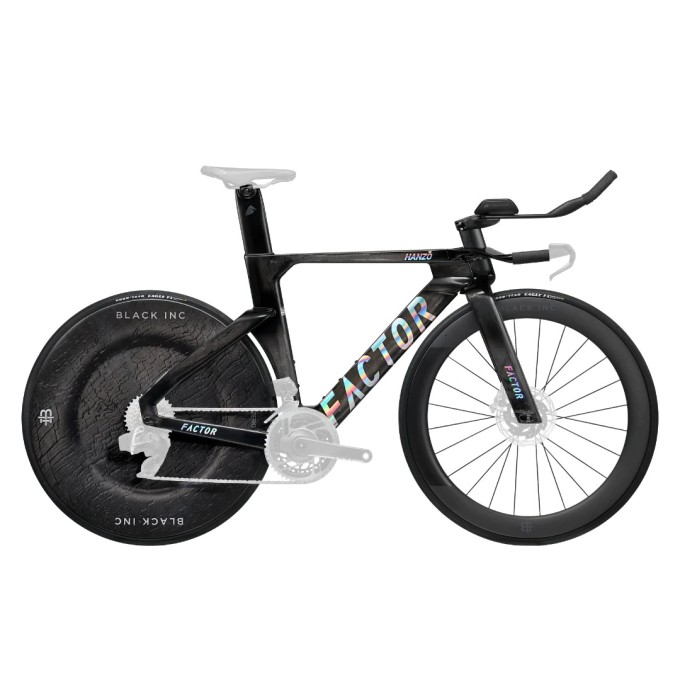

FACTOR - HANZO Premium Package with Wheels

New Order in advance

Stock: Order in advance
Model: FACTOR - HANZO Premium Package with Wheels

Factor

Product Views: 2

Based on 0 reviews. - Write a review

10,599.00€

Available Options

Wheelset

Seatpost

Size

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Request more info

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

An Aero First

It has become fashionable to say that bikes have gotten as aero as possible. However, the Factor HANZŌ proves otherwise. When designing it, we decided to capitalize on the revised UCI rules with the goal of making the fastest purpose-built time trial bike in the world.

Focusing on each part of the bike, both individually and as a working whole, we have pushed each directive from the UCI to the absolute limit in innovative ways. Other manufacturers who do not own their own factories cannot approximate this level of control in the process which makes such precision possible.

This means that we have been able to make the HANZŌ faster and more aero efficient than the SLiCK and faster even than non-UCI legal time trial and triathlon frame designs.

Frame	Factor HANZŌ Toray® & Nippon Graphite® Pan-Based Fiber
Fork	Factor Wide Stance Fork
Seatpost	Factor HANZO Carbon Zero (0mm setback). 27mm setback also available.
Barstem	Factor Mono-Riser Aerobar System
Headset	CeramicSpeed SLT 1″ bearings
Head Tube Diameter	1″ upper and lower
Saddle Rail Clamps	7x7 and 7x9
Bottom Bracket	CeramicSpeed PF4630 Aluminium cups / CeramicSpeed bearings with Wheels MFG 24mm BBRight Reducers/Adapters
Cable Routing	Internal
Compatible Components	Electronic
Brake type	Disc
Max Rotor Size	160mm front & rear
Max Chainring	56-tooth
Front Axle	12 x 100mm thru-axle
Rear Axle	12 x 142mm thru-axle
Wheelset	Black Inc 48\|58
Wheel Size	700c
Max Tire Clearance	28mm
Weight	1150g
Manufacturer Warranty	Limited Lifetime Warranty

	S	M	L	XL
A Stack	501	516	541	566
B Reach	390	405	419	440
C Head Tube Angle	72°	72.5°	72.5°	72.5°
D BB Drop	72	72	72	72
E Trail	64	60	60	60
F Fork Rake/Offset	45	45	45	45
G Chainstay Length	405	405	405	405
H Wheelbase	975	991	1012	1041
I Bike Standover Height	n/a	n/a	n/a	n/a
J Seat Tube Length	491	510	535	560
K Seat Tube Angle	78°	78°	78°	78°
Min Pad Stack	554	572	597	622
Min Pad Reach at Min Pad Stack	387	398	412	433
Max Pad Reach at Min Pad Stack	585	596	611	632
Max Pad Stack	652	671	695	719
Min Pad Reach at Max Pad Stack	356	366	381	402
Max Pad Reach at Max Pad Stack	556	567	582	604
