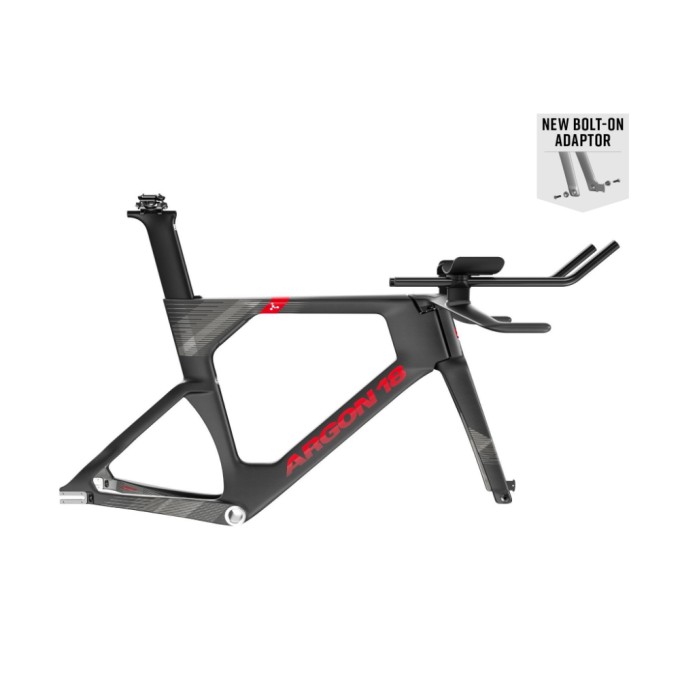

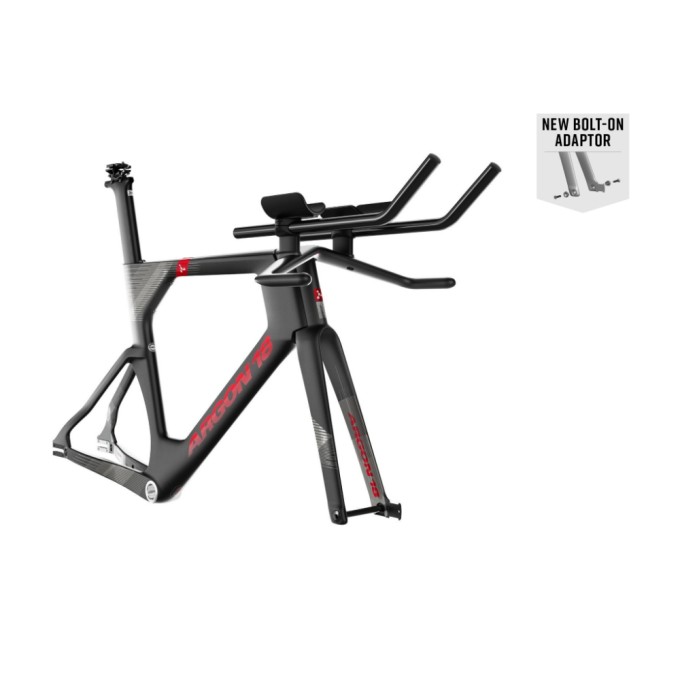

ARGON 18 - ELECTRON PRO TKO PURSUIT - Tko Pursuit Frameset
- Stock: Order in advance
- Model: ARGON 18 - ELECTRON PRO TKO PURSUIT - Tko Pursuit Frameset
Product Views: 204
8,000.00€
Designed for the Tokyo Olympics, the Electron Pro TKO is the result of over 4500 hours of engineering - design, modelling and testing - in a development partnership between Argon 18, Cycling Australia, Zipp, Monash University and the University of Adelaide. With 2% stiffness increase at BB and 9% torsional stiffness increase compared to Electron Pro RIO, the Electron Pro TKO is a powerhouse ready for the most aggressive moves on the track.
With its revolutionarily aero front profile, optimized tube shapes and aggressive geometry, the Electron Pro TKO is designed to optimize every possible advantage and grab every fraction of a second.
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
43.0
51.5
53.0
54.0
B
Seat tube angle
deg
76.0
76.0
76.0
76.0
C
Head Tube Angle
deg
72.7
72.7
72.7
72.7
D
Top tube length
cm
51.5
54.0
56.3
59.1
E
Chain stay length
cm
37.5
37.5
37.5
37.5
F
Wheelbase
cm
94.7
96.9
99.1
102.0
G
BB Drop
cm
3.7
5.0
5.5
5.5
H1
Head Tube Length Min
cm
10.2
12.9
13.9
15.5
I
Stand Over Height
cm
73.2
79.4
80.4
81.5
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack Min
cm
49.7
53.6
55.1
56.6
J
Stack Max
cm
59.7
63.6
65.1
66.6
K
Reach Min
cm
44.8
46.3
48.3
50.7
K
Reach Max
cm
49.3
50.8
52.8
55.2
Stack (Drop Bar)
cm
46.1
50.0
51.5
53.0
Reach (Drop Bar)
cm
39.7
41.2
43.2
45.6
