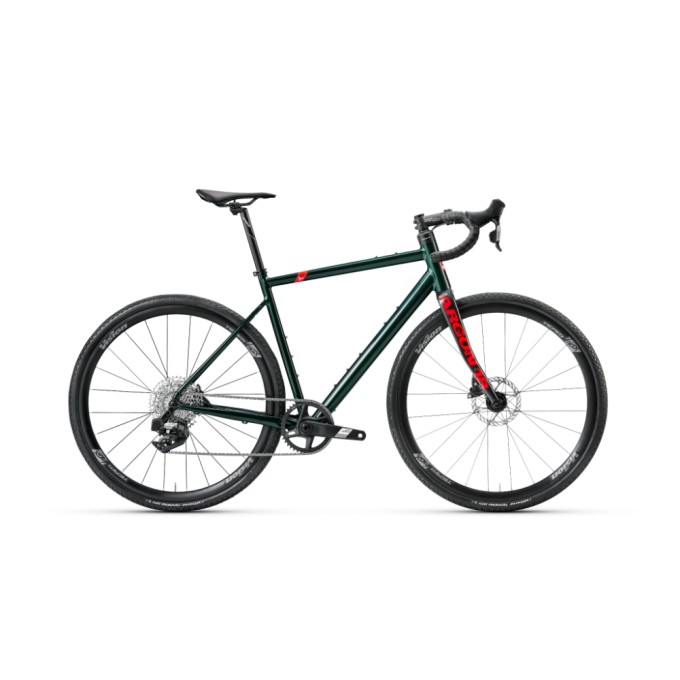

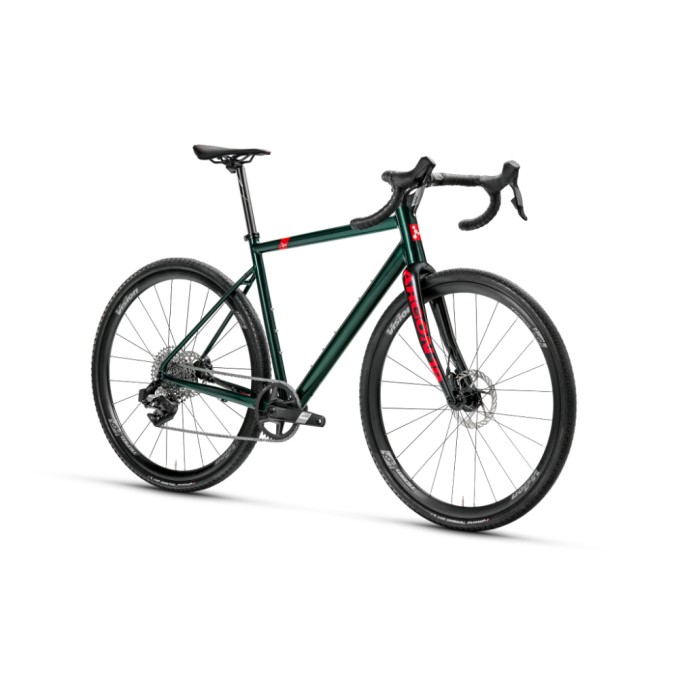

ARGON 18 - GREY MATTER - SRAM APEX AXS XPLR

Really – go get lost. You’ve got extra snacks, gear, and you’ve got the bike that will go anywhere with you. Kicking up rocks on an old logging road? No problem. Muddy singletrack? Comes off easy. Grit pinging your frame for the next hundred miles? Didn’t notice.

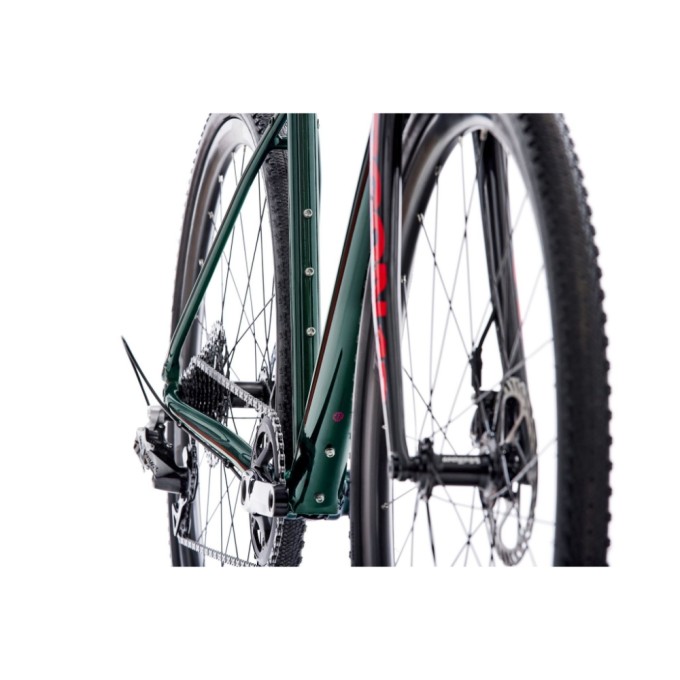

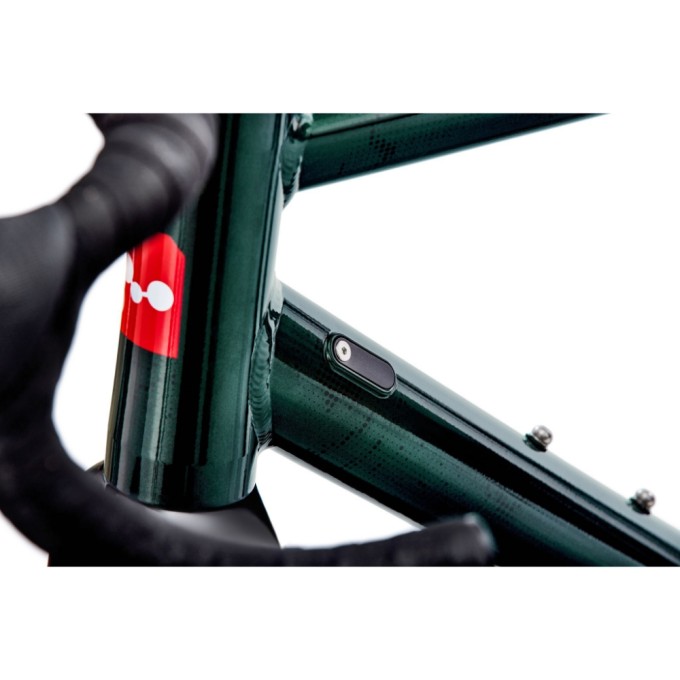

Get even further off the beaten path with a bikepacking-ready ride with fender and rack mounts, and up to six bottle and utility mounts, depending on size. Also with internal cable routing at the headset and external at chainstays, and our 3D headset with cable integration for easy maintenance and dialed-in fit options.

SRAM APEX AXS XPLR Components

Frameset

Frame

Grey Matter

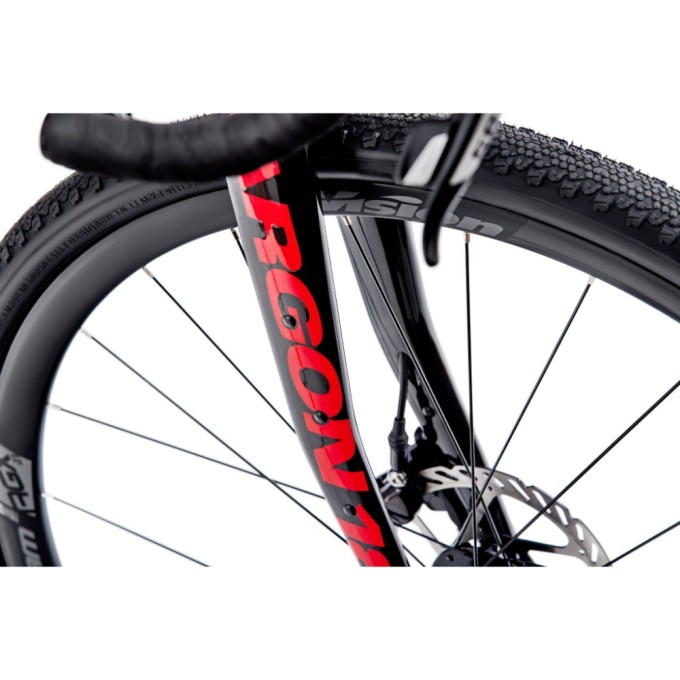

Fork

Grey Matter specific

Headset

FSA No.69 SRS + 3D

Integrated Cables

Yes

Wheels

Wheels

Team Aero-Gravel i23 TC AGX 700c

Tires

Vittoria Terreno Dry 700x38c

Tire Clearance

42c

Group

Bottom Bracket

SRAM DUB PF 86.5 Road Wide

Front Derailleur

N/A

Rear Derailleur

SRAM Apex AXS XPLR

Crankset Length chart

SRAM APEX AXS 1 DUB 42

Chain

SRAM APEX AXS

Cassette

PG 1231 11-44

Brakes

Brakes

SRAM APEX AXS Shifter/Caliper Set

Rotors

SRAM G2 CleanSweep / F:160mm R:140mm

Shifters

SRAM APEX AXS Shifter/Caliper Set

Other Components

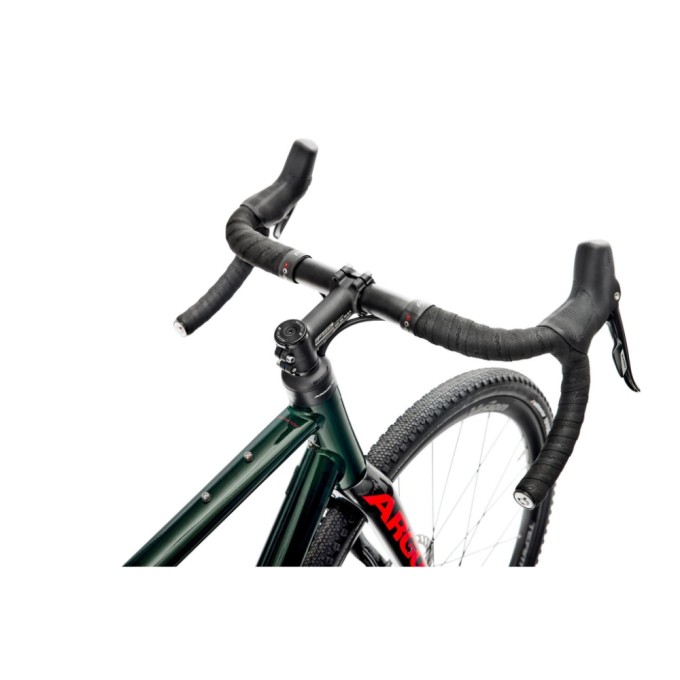

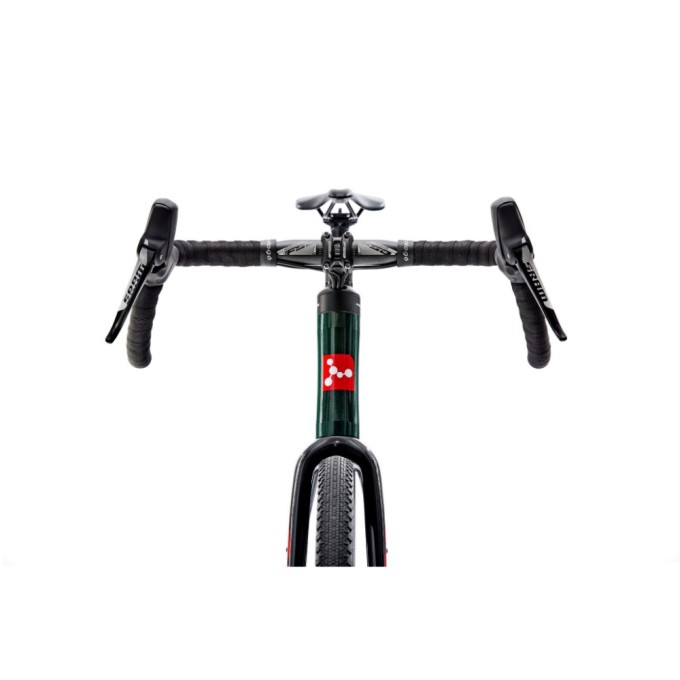

Handlebar Width chart

FSA NS Adventure Compact HR-RD-310S

Stem Length chart

FSA OS-167 Omega Pro

Bar Tape

Prologo Plaintouch black

Saddle

Prologo Akero

Seatpost

FSA Gossamer SB20 Seat Post (27.2mm)

Geometry and fit

Geometry

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

Geometry

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

A

Seat tube Height

cm

42.0

45.0

48.5

52.0

55.5

59.0

B

Seat tube angle

deg

75.5

74.9

74.3

73.7

73.1

72.5

C

Head Tube Angle

deg

69.5

71.0

71.4

72.0

72.0

75.5

D

Top tube length

cm

49.6

51.7

53.8

56.0

58.2

60.7

E

Chain stay length

cm

42.8

42.8

42.8

42.8

43.0

43.2

F

Wheelbase

cm

100.3

100.6

102.1

102.7

104.8

106.2

G

BB Drop

cm

8.0

8.0

7.5

7.5

7.0

7.0

H1

Head Tube Length 3D (0mm)

cm

10.4

11.9

14.4

16.0

18.7

21.1

H2

Head Tube Length 3D (25mm)

cm

12.9

14.4

16.9

18.5

21.2

23.6

I

Stand Over Height

cm

68.9

71.6

75.3

78.3

81.8

84.9

Fit (Stack and Reach)

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

Fit (Stack and Reach)

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

J

Stack 3D (0mm)

cm

52.5

54.5

56.5

58.5

60.5

63.0

J

Stack 3D (25mm)

cm

54.8

56.9

58.9

60.9

62.9

65.4

K

Reach 3D (0mm)

cm

35.8

36.8

37.8

38.8

39.8

40.8

K

Reach 3D (25mm)

cm

34.9

36.0

37.0

38.0

39.0

40.0

Saddle Height Min

cm

49.0

52.0

55.5

59.0

62.5

66.0

Saddle Height Max

cm

74.0

77.0

80.5

84.0

87.5

91.0

Standover Height is measured with 700x38c tires
