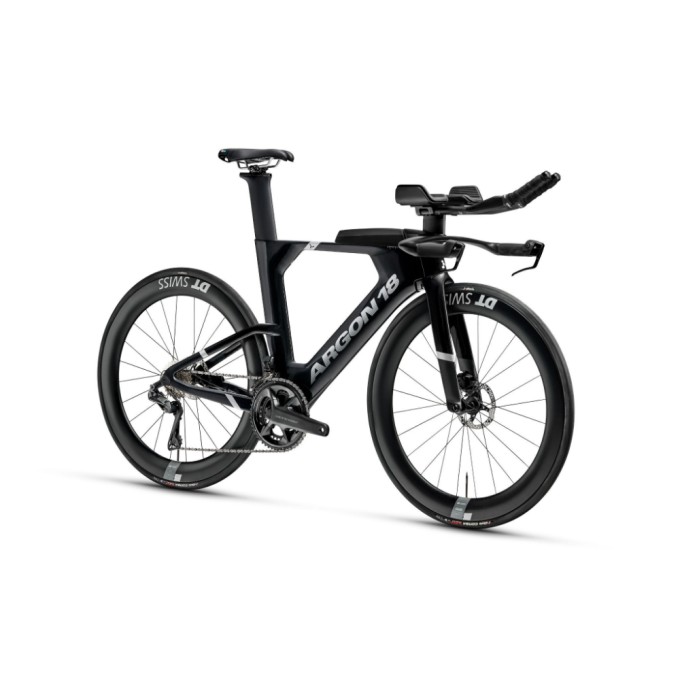

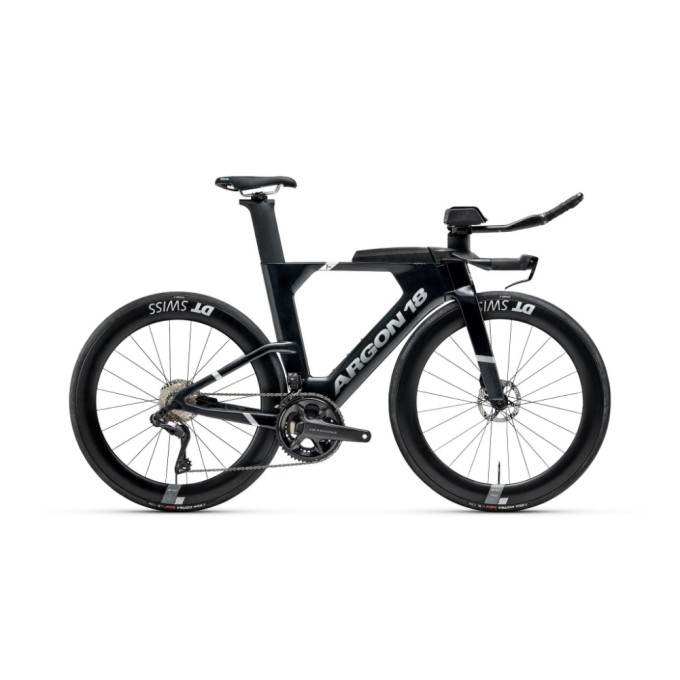

ARGON 18 - E119 - Shimano Ultegra Di2

Obviously, as the name says, the E-119 Tri+ Disc sports disc brakes – but that’s just the beginning. In an industry first, we’ve integrated the brake calipers into the frame, for an aero advantage. Integration throughout the design also means a hidden toolkit in the BB, an integrated bento box and a fully re-designed cockpit. That this bike is aero goes without saying – but our focus was on full-system aero integration: bike and rider, plus all carry-ons.

The E-119 Tri+ Disc offers up to a 10W advantage over the previous-generation E-119, considering frame optimization, system integration, and compatibility with advanced aero components, such as wheelsets. When optimal rider position is factored in, using new fit range capabilities, it can add an additional advantage.

Shimano Ultegra Di2 Components

Frameset

Frame

E-119 Tri+ Disc

Fork

E-119 Tri+ Disc specific

Headset

E-119T+ Disc (included with frameset)

Integrated Cables

Yes

Storage Optimization System

Yes

Wheels

Wheels

DT Swiss ARC1400 Dicut Wheelset

Tires

Vittoria Corsa N.EXT TLR 28mm

Tire Clearance

28C (30mm)

Group

Bottom Bracket

CeramicSpeed BB86 Shimano Coated

Front Derailleur

Shimano Ultegra Di2 R8150

Rear Derailleur

Shimano Ultegra Di2 R8150

Crankset Length chart

Shimano Ultegra R8100 52/36 Powermeter

Chain

Shimano Ultegra CN-M8100 12S

Cassette

Shimano Ultegra CS-R8100 11-30

Brakes

Brakes

Argon 18 Integrated Brake System

Brake Levers

Argon 18 Integrated Brake System

Rotors

TRP TR140-25 / F:140mm R:140mm

Shifters

Shimano SW-R9150 Sprint/Bar Shifters

Other Components

Handlebar

Argon 18 Integrated Cockpit

Stem

Argon 18 Integrated Cockpit

Bar Tape

Ciclovation LEATHER TOUCH Tornado Gloss (custom)

Saddle

ISM PN3.1

Seatpost

E-119T+ Disc (included with frameset)

Extensions

51 Speedshop Custom Extensions

Included with bike

Toolkit

Yes

Geometry and fit

Geometry

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

Geometry

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

A

Seat tube Height

cm

45.5

50.2

51.7

54.2

57.3

B

Seat tube angle

deg

78.0

78.0

78.0

78.0

78.0

C

Head Tube Angle

deg

72.0

72.0

72.0

72.0

72.0

D

Top tube length

cm

49.1

50.5

51.8

53.3

54.9

E

Chain stay length

cm

41.3

41.3

41.3

41.3

41.3

F

Wheelbase

cm

97.4

98.8

100.3

102.1

104.1

G

BB Drop

cm

7.3

7.3

7.3

7.3

7.3

H1

Head Tube Length Min

cm

6.0

7.0

8.6

11.3

14.4

I

Stand Over Height

cm

72.6

76.5

78.0

80.5

83.2

Fit (Stack and Reach)

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

Fit (Stack and Reach)

XXS44-46

XS47-50

S51-53

M54-56

L57-59

XL60-62

J

Armpad stack

cm

57.3 - 66.3

58.3 - 67.3

59.8 - 68.8

62.3 - 71.3

65.3 - 74.3

K

Armpad Reach

cm

41.4 - 50.1

42.4 - 51.1

43.4 - 52.1

44.4 - 53.1

45.4 - 54.1

Saddle Height Min

cm

58.0

62.7

64.2

66.7

69.8

Saddle Height Max

cm

77.5

82.2

83.7

86.2

89.3

Standover Height is measured with 700x23c tires
