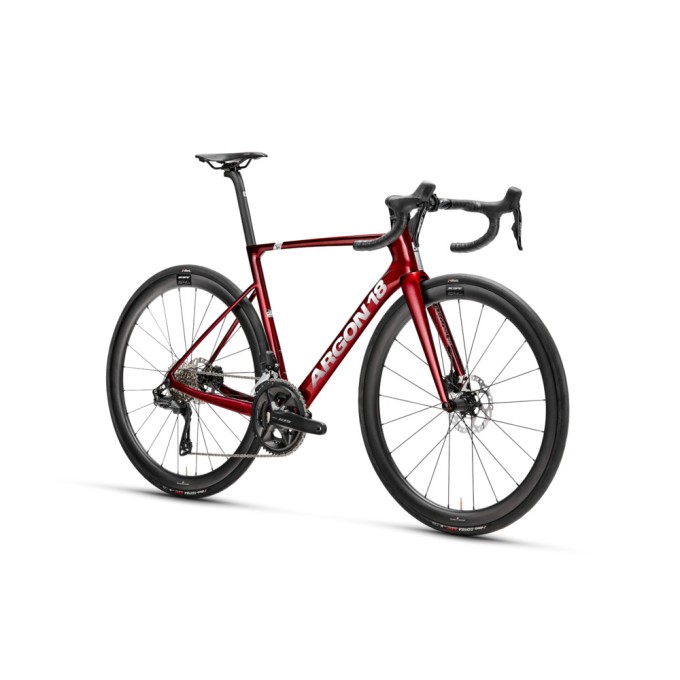

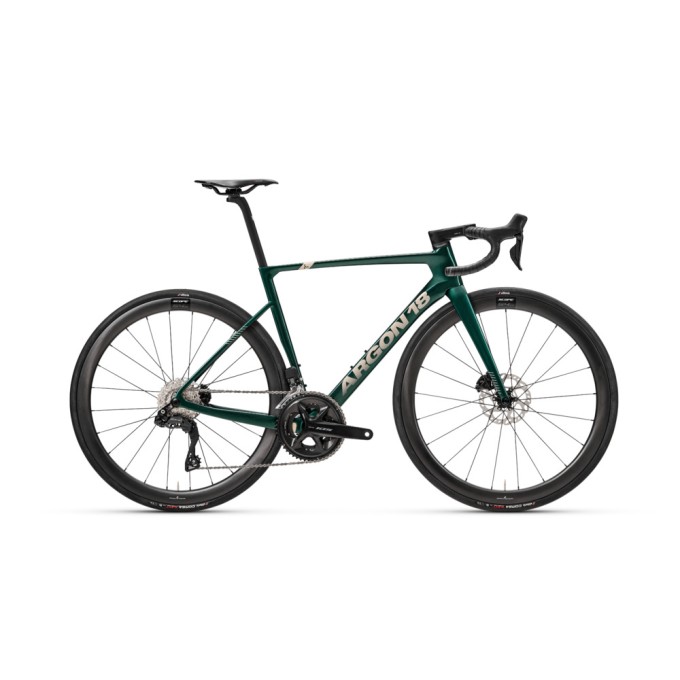

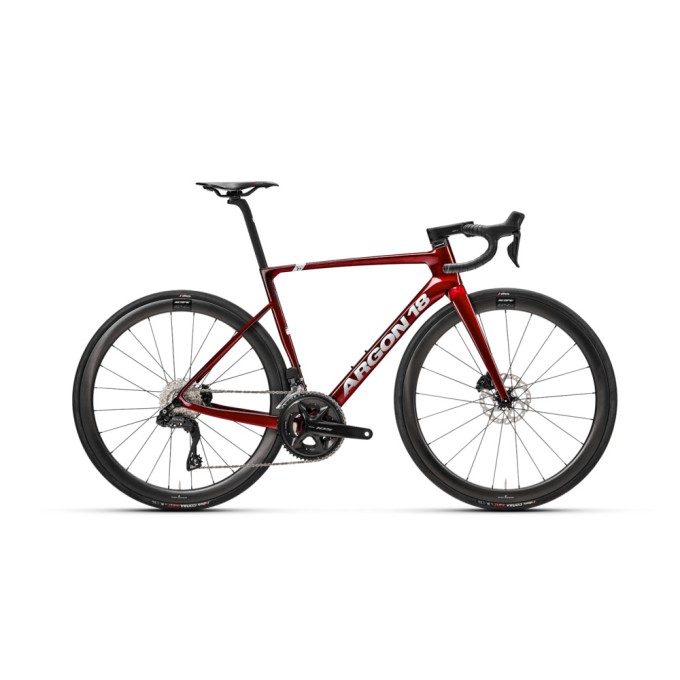

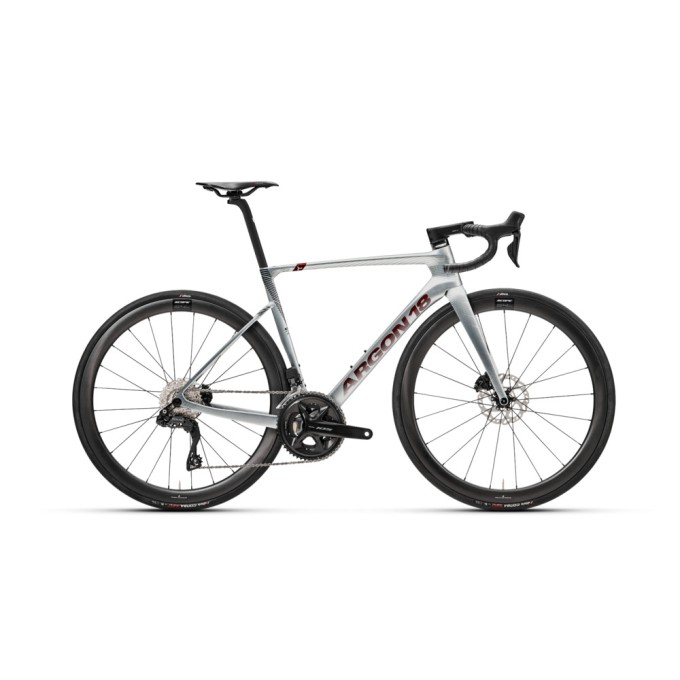

ARGON 18 - SUM - Shimano 105 Di2
5,495.00€
Decisions, decisions… made easy. With a bike that gives you flat-out advantage on the climbs, the sprints and the straightaways, the only decision you’ll need to make is how nice you want to be to the other guys.
A rider-oriented design approach ensures a frame that is both rooted and responsive, with a ride experience most aero frames can’t match. With a layup engineered to maximise aerodynamics while keeping weight low, the design process for the Sum allowed us to strip away all unnecessary weight within the new aero profile tube shapes - all while maintaining maximum power transfer.
Shimano 105 Di2 Components
Frameset
Frame
SUM

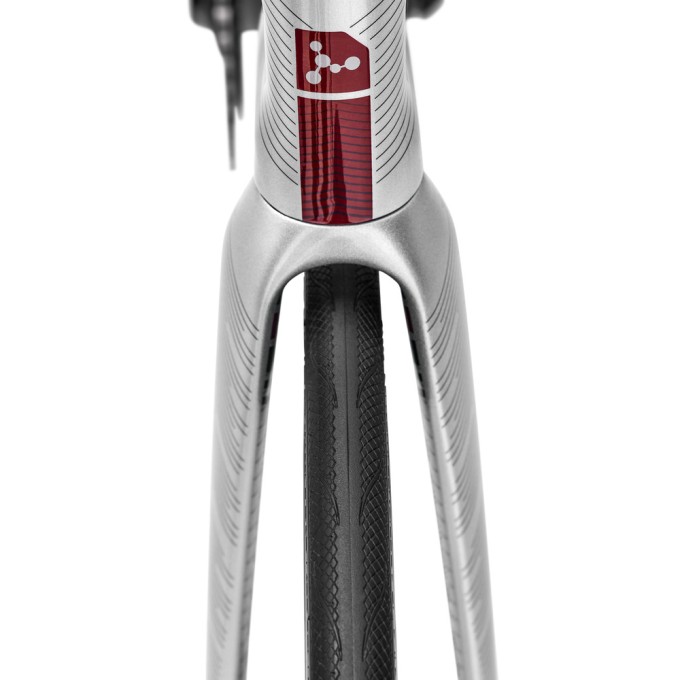

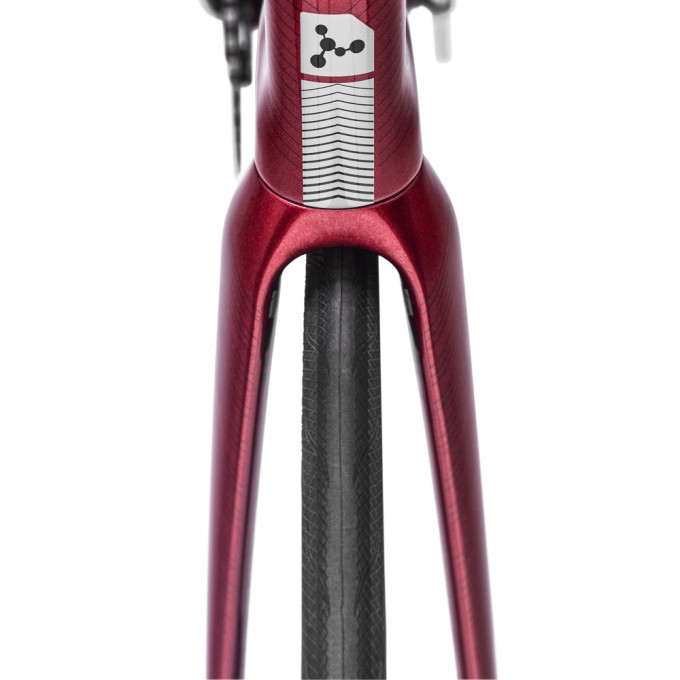

Fork
SUM specific
Headset
FSA Headset NO.55R 1.5'' + 3D
Integrated Cables
Yes
Wheels
Wheels
Scope S4.A
Tires
Vittoria Corsa N.EXT TLR 28mm
Tire Clearance
30C (32mm)
Group
Bottom Bracket
BB Ultegra SM-BB72
Front Derailleur
Shimano 105 Di2 R7150
Rear Derailleur
Shimano 105 Di2 R7150
Crankset
Shimano 105 FC-R7100 52/36
Chain
Shimano 105 CS-R7100 11-34
Cassette
Shimano 105 CS-R7100 11-34
Brakes
Brakes
Shimano 105 Di2 R7170
Brake Levers
Shimano 105 Di2 R7170
Rotors
Shimano SM-RT70 / F:160mm R:140mm
Other Components

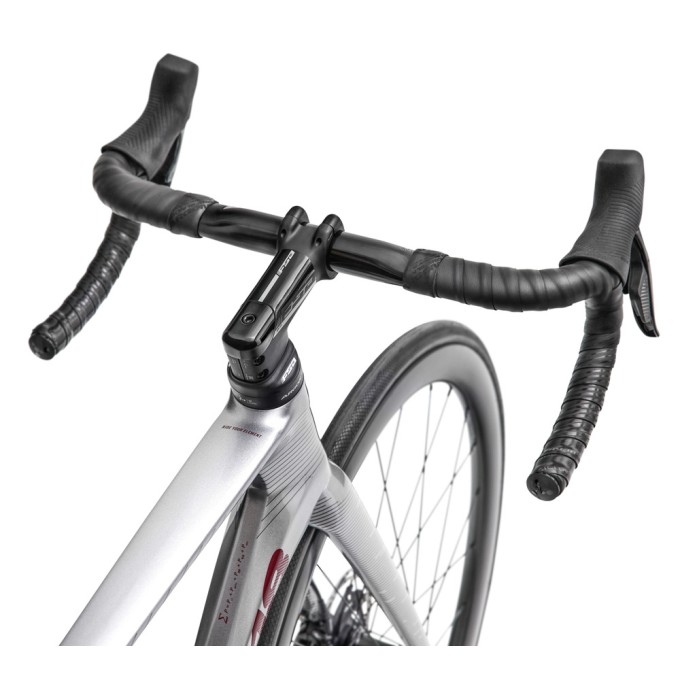

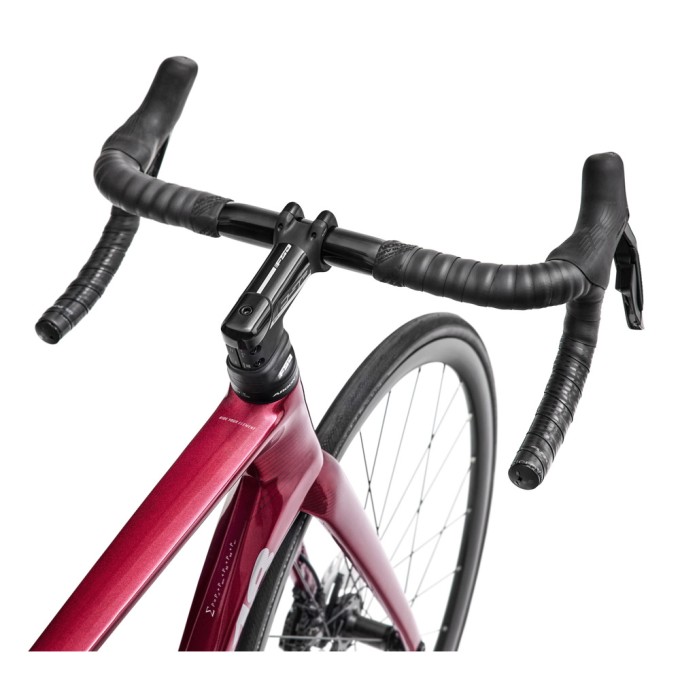

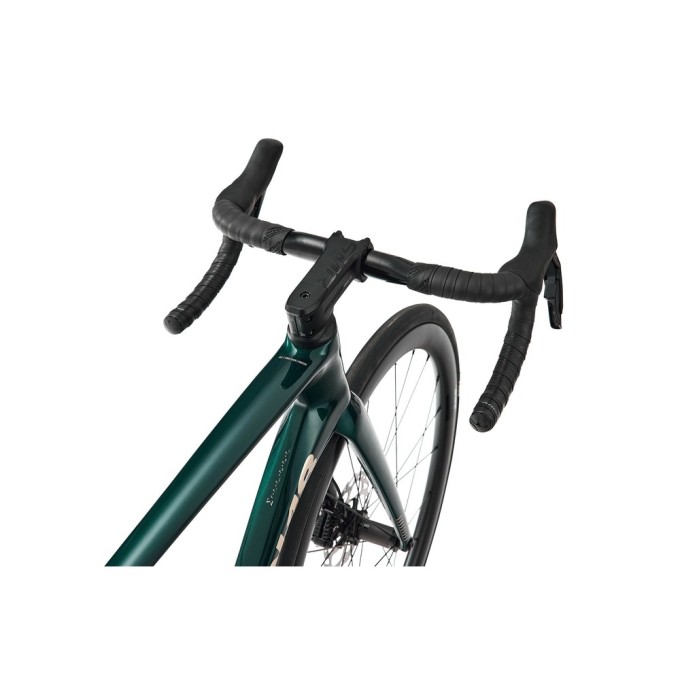

Handlebar
FSA Energy SCR Compact
Stem
FSA SMR-II
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Repente Quasar
Seatpost
SUM specific
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
39.5
42.5
46.0
50.5
55.0
59.5
B
Seat tube angle
deg
75.0
74.5
74.0
73.5
73.0
72.5
C
Head Tube Angle
deg
71.2
72.1
72.7
72.7
72.7
73.0
D
Top tube length
cm
50.3
52.0
53.8
55.7
57.8
60.0
E
Chain stay length
cm
41.0
41.0
41.0
41.0
41.0
41.0
F
Wheelbase
cm
96.7
97.2
97.5
99.0
100.6
102.0
G
BB Drop
cm
6.9
7.3
7.7
7.7
7.7
7.7
H1
Head Tube Length 3D (0mm)
cm
6.9
8.5
10.1
12.6
15.2
18.0
H2
Head Tube Length 3D (15mm)
cm
8.4
10.0
11.6
14.1
16.7
19.5
H3
Head Tube Length 3D (25mm)
cm
9.4
11.0
12.6
15.1
17.7
20.5
I
Stand Over Height
cm
67.6
70.0
72.7
76.6
80.4
84.1
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack 3D (0mm)
cm
47.1
49.3
51.6
54.0
56.5
59.2
J
Stack 3D (15mm)
cm
48.5
50.7
53.0
55.4
57.9
60.6
J
Stack 3D (25mm)
cm
49.5
51.7
54.0
56.4
58.9
61.6
K
Reach 3D (0mm)
cm
37.5
38.2
38.9
39.7
40.5
41.4
K
Reach 3D (15mm)
cm
37.0
37.7
38.5
39.3
40.1
41.0
K
Reach 3D (25mm)
cm
36.7
37.4
38.2
39.0
39.8
40.7
Saddle Height Min
cm
56.5
59.5
63.0
67.5
72.0
76.5
Saddle Height Max
cm
71.5
74.5
78.0
82.5
87.0
91.5
