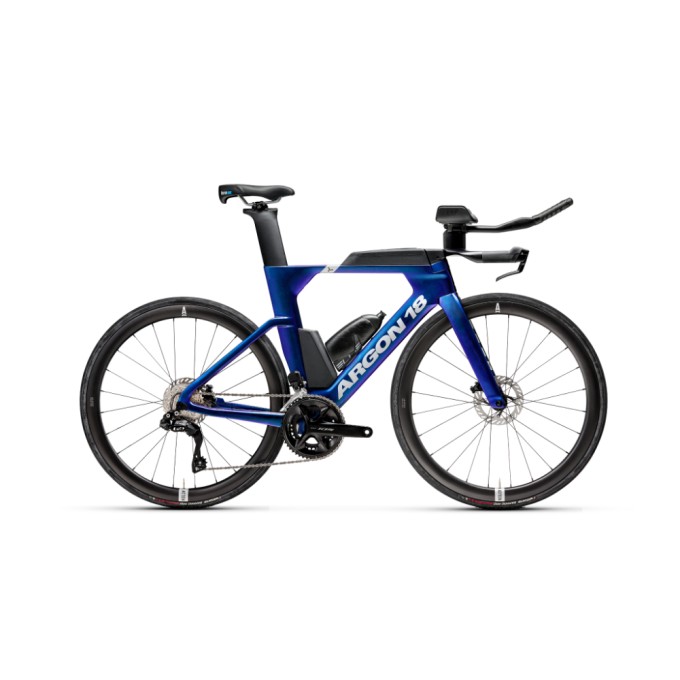

ARGON 18 - E117 - Shimano 105 Di2
New
Order in advance
ARGON 18 - E117 - Shimano 105 Di2
6,895.00€

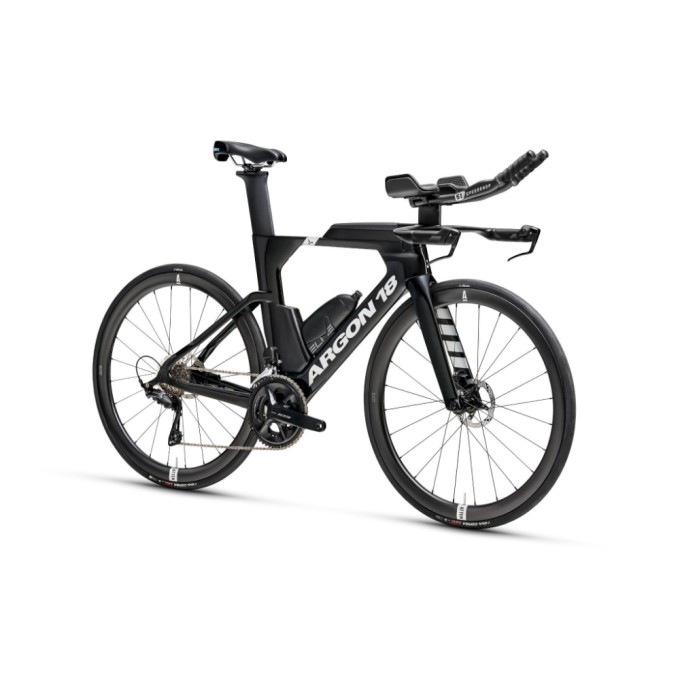

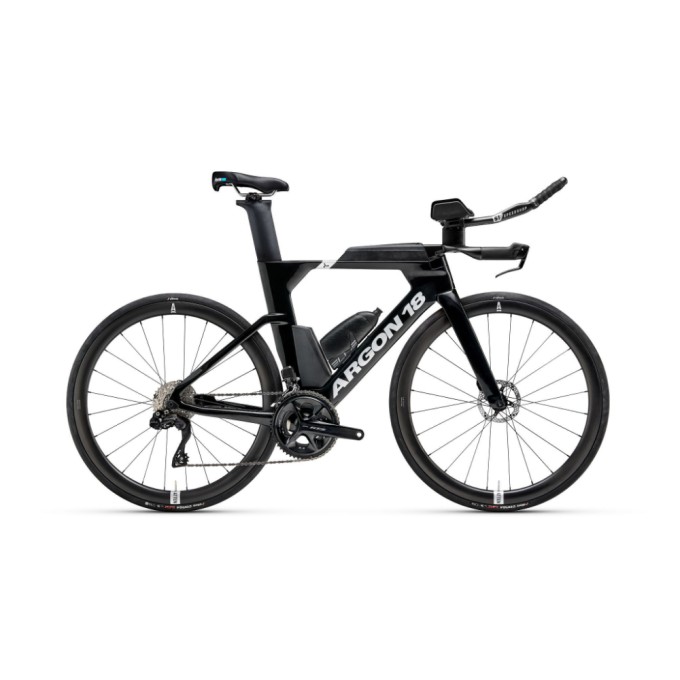

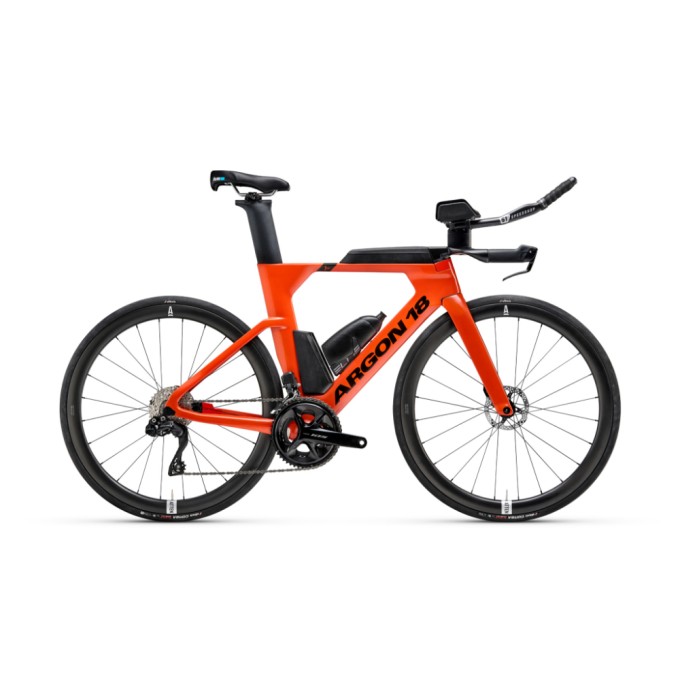

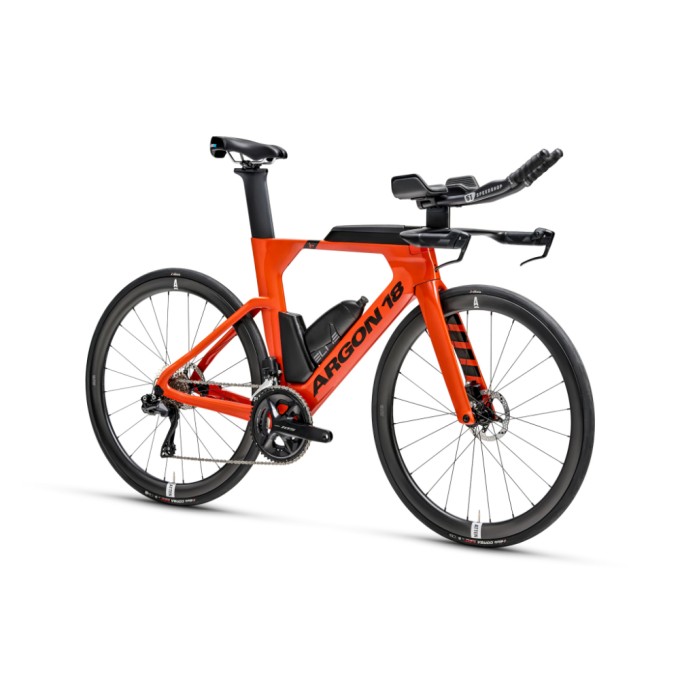

Introducing the new, redesigned E117 triathlon bike, developed for serious triathletes and TT competitors determined to shatter their personal bests. The E117 is a race-ready, fully-equipped and value-packed performance machine, delivering unmatched innovation drawn directly from our pro-level bikes.
Shimano 105 Di2 Components

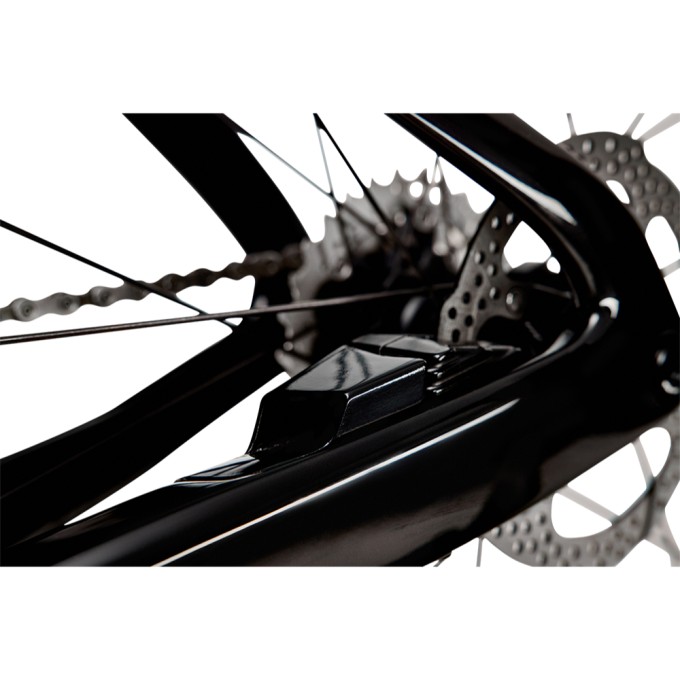

Argon 18 Integrated Brake System
Argon 18's integrated brakes seamlessly merge aerodynamics with braking efficiency. Designed to reduce drag and enhance performance, the brakes are integrated into the frame, providing precise control and unparalleled aerodynamic advantage.
Shimano 105 Di2 R7150
The Shimano 105 rear derailleur completes a shift in the blink of an eye with its high-performance motor and optimized link structure.
ATTEN L42 wheelset
Designed for fast road and all-road riding, the L42s feature a 42 mm rim profile, offering an optimum balance between aerodynamics, weight and handling.

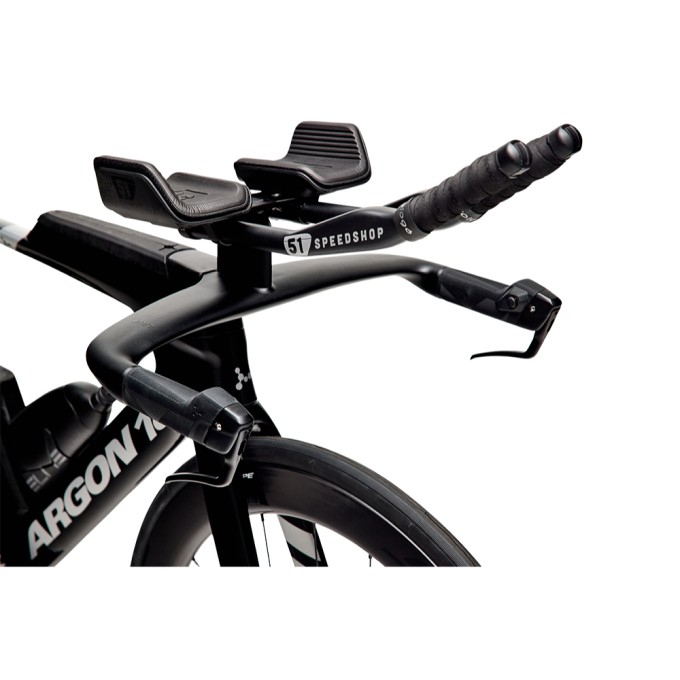

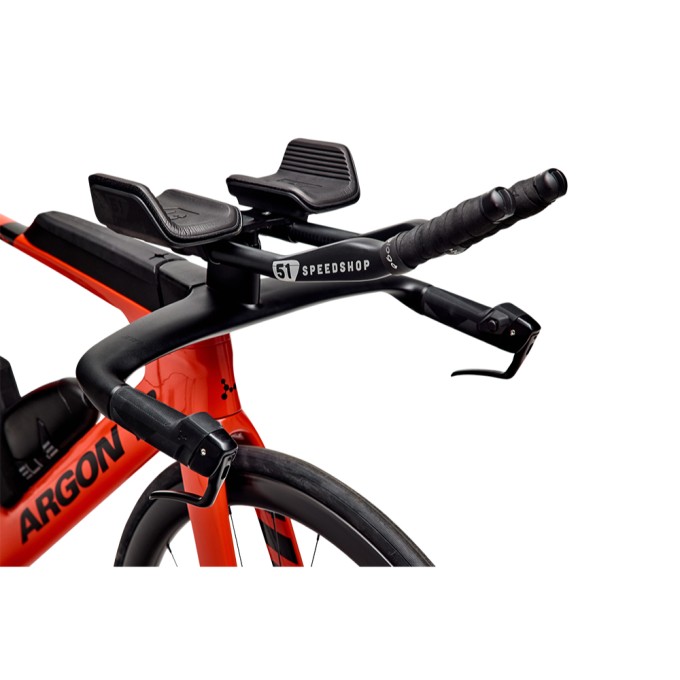

51 Speedshop Custom Extensions
Featuring an airfoil shape that hugs the arms to optimize aerodynamic performance, 51 Speedshop extensions also offer a 30 degree grip angle to provide neutral wrist orientation, promoting upper body comfort.
Frameset
Frame
E117
Fork
E117
Headset
E117
Integrated Cables
Yes
Wheels
Wheels
ATTEN L42 wheelset
Tires
Vittoria Corsa N.EXT TLR 28mm
Tire Clearance
30C (32mm)
Group
Bottom Bracket
Shimano BB-RS500-PB
Front Derailleur
Shimano 105 Di2 R7150
Rear Derailleur
Shimano 105 Di2 R7150
Crankset
Shimano 105 FC-R7100 52/36
Chain
Shimano 105 CN-M7100
Cassette
Shimano 105 CS-R7100 11-34
Brakes
Brakes
Argon 18 Integrated Brake System
Brake Levers
Argon 18 Integrated Brake System
Rotors
TRP TR140-25 / F:140mm R:140mm
Shifters
Shimano SW-R9150 Sprint/Bar Shifters
Other Components
Handlebar
Argon 18 Integrated Cockpit
Stem
Argon 18 Integrated Cockpit
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss (custom)
Saddle
ISM PR1.0
Seatpost
E-117T Disc
Extensions
51 Speedshop Custom Extensions
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
45,5
50,0
51,6
54,2
56,8
B
Seat tube angle
deg
78,0
78,0
78,0
78,0
78,0
C
Head Tube Angle
deg
72,0
72,0
72,0
72,0
72,0
D
Top tube length
cm
49,2
50,4
51,7
52,7
54,5
E
Chain stay length
cm
41,3
41,3
41,3
41,3
41,3
F
Wheelbase
cm
97,6
98,9
100,4
101,7
103,8
G
BB Drop
cm
7,0
7,0
7,0
7,0
7,0
H1
Head Tube Length 3D (0mm)
cm
4,9
6,0
7,7
10,4
13,1
H2
Head Tube Length 3D (35mm)
cm
8,4
9,5
11,2
13,9
16,6
I
Stand Over Height
cm
72,9
76,7
78,2
80,8
83,3
L
Fork Length (Axle-to-crown)
cm
37,5
37,5
37,5
37,5
37,5
R
Fork Rake
cm
4,5
4,5
4,5
4,5
4,5
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Armpad stack
cm
55 - 67,4
56 - 68,4
57,6 - 70
60,2 - 72,6
62,8 - 75,1
K
Armpad Reach
cm
40,5 - 50,4
41,5 - 51,4
42,5 - 52,3
43 - 52,8
44,2 - 54,1
Saddle Height Min
cm
60.0
64,5
66,1
68,7
71,3
Saddle Height Max
cm
77.0
81,5
83,1
85,7
88,3
