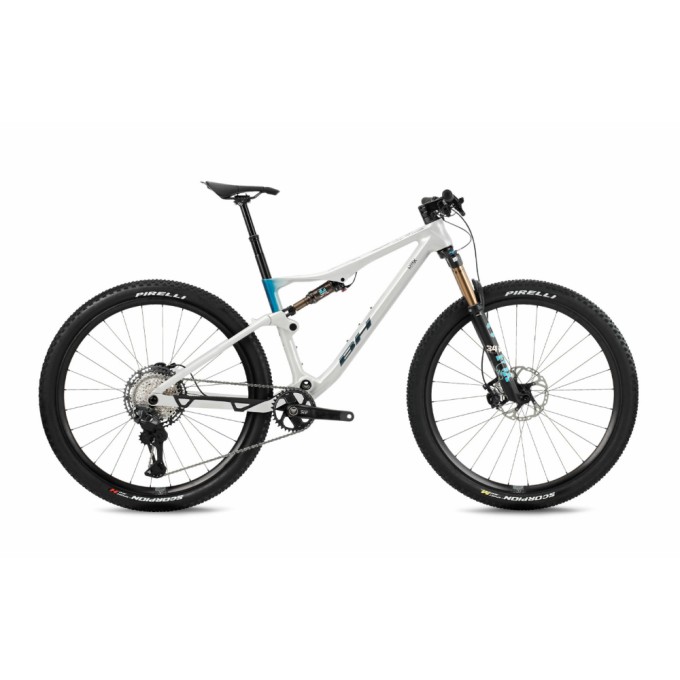

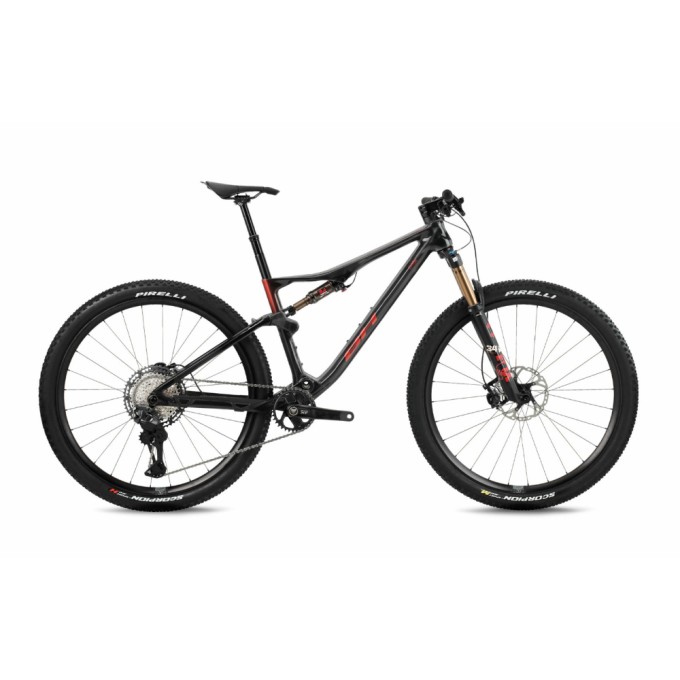

BH - LYNX RACE 9.2 DX926

Name: BH - LYNX RACE 9.2 DX926
Brand: BH Bikes
SKU: DX926
Price: 5899.00 EUR
Availability: OutOfStock

New Order in advance

BH - LYNX RACE 9.2 DX926

Stock: Order in advance
Model: BH - LYNX RACE 9.2 DX926
SKU: DX926

BH Bikes

Product Views: 1

Based on 0 reviews. - Write a review

5,899.00€

Available Options

BH bike color

Size

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Request more info

This product qualifies for free shipping

Always fast. On short distances. On long distances. On tracks. On trails. Going up. Going down. This is what you want from an XC bike that doubles as a marathon bike. The Nº1 frame for the World Cup with David Valero and BH Coloma Team.

Frame	Frame Lynx Race, EC Layup, Acros ICR, PF92, 148x12, UDH	Rear shock Fox Float SLFactory Push to Lock, 190x45mm, DCM,DRM,CMF	Fork Fox 34SC Factory Push to Lock Kabolt 120mm
Drivetrain	Shift levers Shimano XT Di2 8200	Rear derailleur Shimano XT Di2 8200 12s	Crank set Shimano XT 8200 34T 175mm 55mm	Bb set Shimano PF92	Cassete Shimano 8200 10/51	Chain Shimano XT 116L
Brakes	Front brake Shimano XT 8220 180mm	Rear brake Shimano XT 8220 160mm
Wheelset	Wheelset EVO Alloy 28H 30mm internal 6H Ratchet 40T	Tires Pirelli Scorpion XCM 2.4 SP FR/ XCH 2.4 SP R	Inner tubes Chaoyang 29x21.10/2.35
Seat	Saddle Prologo Scratch M5	Seat clamp Integrated	Seatpost Bike Yoke Divine SL 31,6mm, 125mm Drop
Cockpit	Handlebar BH Evo Carbon Top Flat 760mm, 10mm Rise	Stem FIT Race EVO 60mm 31,8mm -6º	Headset Acros ICR 36/45º, Block Lock 160º	Grips BH Control Grip

LYNX RACE 9.2

DX926

	SM	MD	LA	XL
H1 - ST LENGTH	400	420	460	500
H2 - HT LENGTH	90	90	100	120
H3 - FORK LENGTH	525	525	525	525
H4 - TT LENGTH	566,8	591,8	619,1	643,7
H5 - FRONT CENTER	702	726,9	755,8	783,5
H6 - CHAINSTAY LENGHT	430	430	430	430
H7 - WHEEL BASE	1135,8	1160,8	1189,7	1217,5
H8 - BB DROP	40	40	40	40
A1 - ST ANGLE	76	76	76	76
A2 - HT ANGLE	67	67	67	67
reach	420	445	470	490
stack	588,9	588,9	598,1	616,5
